Week 11 — Whitebox Cryptography¶

Click inside the slides and use the arrow keys; use the button at the bottom right of the slides or the link above for full screen.

# Windows (PowerShell)
.\build.ps1
cd week-11\01-oyuncak-tablo
.\bin\windows\oyuncak_wb.exe
cd ..\02-gomulu-anahtar
.\bin\windows\gomulu.exe --tara

# WSL / Linux
./build.sh
cd week-11/01-oyuncak-tablo && ./bin/linux/oyuncak_wb
cd ../02-gomulu-anahtar && ./bin/linux/gomulu --tara

0. Before we start¶

This section shows which foundations this week builds on: first it briefly reminds you of concepts carried over from earlier weeks, then it defines, from scratch, only the terms specific to this week (from S-box to GF(2)); the sections in the body proceed assuming you already know these terms.

What we bring from earlier weeks¶

• Encryption, keys, and symmetric/asymmetric encryption — encryption turns plaintext into unreadable ciphertext using a key; symmetric encryption (e.g. AES) uses the same key and is fast, asymmetric (e.g. RSA) uses a public/private key pair and is slow but makes key distribution easy; security depends on the secrecy of the key, not the secrecy of the algorithm (Kerckhoffs's principle) (Week 3, §2). This week we carry this principle into the white-box setting: here both the algorithm and the key are in the attacker's hands (§1).
• AES and bit security level — AES is the most widely used symmetric encryption algorithm; it operates on 16-byte blocks, mixing the data in rounds of byte substitution, row/column mixing, and key addition (the details will not be asked in this week's exam; the idea is enough for whitebox). "n-bit security" means roughly 2ⁿ attempts are needed to break something; AES-128 provides 128-bit security (Week 10, §1). This week we mainly work with AES; we reuse the bit-security measure not for the key itself, but to estimate the size/speed cost of whitebox tables (§3).
• XOR — the operation that gives 1 if the bits differ and 0 if they're the same; reversible because a XOR b XOR b == a (Week 5, §12; Week 9 also used it in string obfuscation). In AES, the "key addition" step is an XOR (state XOR key); this week it plays a central role both in constructing Chow AES (§3) and in the worked numeric example showing why "mixing with just XOR" fails (§2).
• Entropy — a measure of how random/unpredictable a block of data appears; high-entropy blocks are usually encrypted/random data, low-entropy blocks are ordinary text/data (Week 2, §6; Week 9 also used it in binary analysis). This week an entropy scan shows up as the static-analysis technique that finds a key embedded in a fixed array within seconds (§1, §2).
• Debugger — a tool that lets you run a program step by step and read every value currently in memory and the processor's registers (e.g. gdb, x64dbg) (Week 6, §4). This week the white-box attacker's "observing execution" and "running only one round" capability is, concretely, exactly this (§1).
• Static and dynamic analysis — static analysis examines a program without running it; dynamic analysis examines it by running it (Week 4, §9). This week we use this distinction to classify attacks: entropy scanning and BGE are static (§2, §4), DCA and DFA are dynamic (§3, §4).
• Instrumentation and an emulator — instrumentation is equipping a program to automatically record what is processed at specific points while it runs; an emulator is a tool that imitates the real processor in software (Week 6, §5–§6). This week these two tools are what let an attacker run a whitebox routine thousands of times automatically and record every lookup-table access — the precondition for DCA (§1, §3–§4).
• HSM and SoftHSM — an HSM is dedicated hardware that stores and operates on keys without the key ever leaving it; SoftHSM emulates the same interface (PKCS#11) in software but provides no hardware protection (Week 10, §11). This week we revisit these as whitebox's server-side counterpart, at the strongest end of the key-protection options (§5).

Background: S-box and lookup table¶

A lookup table is an array that gives a precomputed output for every input: instead of computing, you read T[x] straight from the table, which makes things faster. The S-box (substitution box) used in AES's "byte substitution" step is such a table: it replaces each byte with another according to a fixed rule — e.g. a 256-entry mapping such as S-box[0x53] = 0xED. Keep this table in mind; it is the heart of whitebox.

Background: side channel and DPA¶

A side channel is a type of attack that uses not the algorithm's mathematics but the physical/indirect information it leaks while running (elapsed time, power consumption, electromagnetic emission); it is classic against smart cards. DPA (Differential Power Analysis) is a concrete example: it applies statistics to a device's power-consumption measurements to extract the key without ever looking inside the device. Keep this idea in mind; whitebox's most powerful attack (DCA, §4) is the software form of DPA.

Background: bijection and permutation¶

A bijection (a one-to-one, onto mapping) is a transformation that maps every input to exactly one output and can be inverted; e.g. f(x) = x ^ 0x5A is a bijection (its own inverse). A permutation is a special kind of bijection that reorders the elements of a finite set: each element takes the place of exactly one other element, exactly once — e.g. on the set {0,1,2,3}, 0→2, 1→0, 2→3, 3→1 is a permutation, with no value skipped or repeated. An S-box is a permutation of a fixed-size set of byte values; the toy S-box we build in §3 is a small (4-element) example of the same idea. Whitebox wraps tables in exactly this kind of hidden bijection.

Background: TEE and secure element (SE)¶

TEE (Trusted Execution Environment) is a secure region of the phone's processor that is isolated from the operating system; secure element (SE) is a separate, tamper-resistant hardware chip that stores keys. Both are the strongest protection for a key; whitebox cryptography exists precisely for situations where they are absent (§5).

Background: execution trace and correlation¶

An execution trace is the sequence of intermediate values recorded over the course of one run — which memory address was read, which value was written, which instruction executed. In the black box the attacker sees only the final output; in the white box they can, if they wish, record the entire trace. Correlation is a measure of whether two variables (e.g. an observed value and a value predicted from a key hypothesis) change together, consistently; high correlation means the two variables appear linked. DPA and its software form DCA (§1, §3–§4) use exactly this pair to separate the correct key hypothesis from the wrong ones: many execution traces are collected, then for each hypothesis the correlation between predicted and observed values is measured.

Background: GF(2) and matrices¶

A finite field is a number system with addition and multiplication defined on it that has a limited number of elements. GF(2) is the smallest finite field, consisting only of the elements {0, 1}; in this field, addition is exactly XOR and multiplication is AND. A matrix is a rectangular arrangement of numbers (here, only 0s and 1s); "multiplying" the input bits by such a matrix is in practice XOR-ing selected bits together (a linear transformation). A matrix is non-singular if it has an inverse, i.e. the transformation it applies is reversible — information is not lost, only mixed; the measure of how many independent rows/columns a matrix has is its rank, and "full rank" means the matrix is non-singular. Whitebox's mixing matrices in §3 (Step 4) are always chosen to be non-singular; otherwise decryption would become impossible. Detailed finite-field arithmetic is outside the exam's scope; it's enough to remember GF(2) as "a world of reversible linear operations that work with XORs".

How do the concepts connect to each other?¶

These terms will be used throughout the week not in isolation, but in connected chains. Let's look at the three main chains now, because as the sections progress we'll return to every link in these chains:

• Construction chain: key → S-box → lookup table (partial evaluation) → bijection (internal/external encoding) → GF(2) matrix (mixing). This chain will be built by hand in §3, with our toy S-box.
• Attack chain: static/dynamic analysis → entropy scan / debugger → execution trace → correlation. This chain will become concrete in §1, §3, and §4 — first in the white-box attacker's session, then in the DCA example.

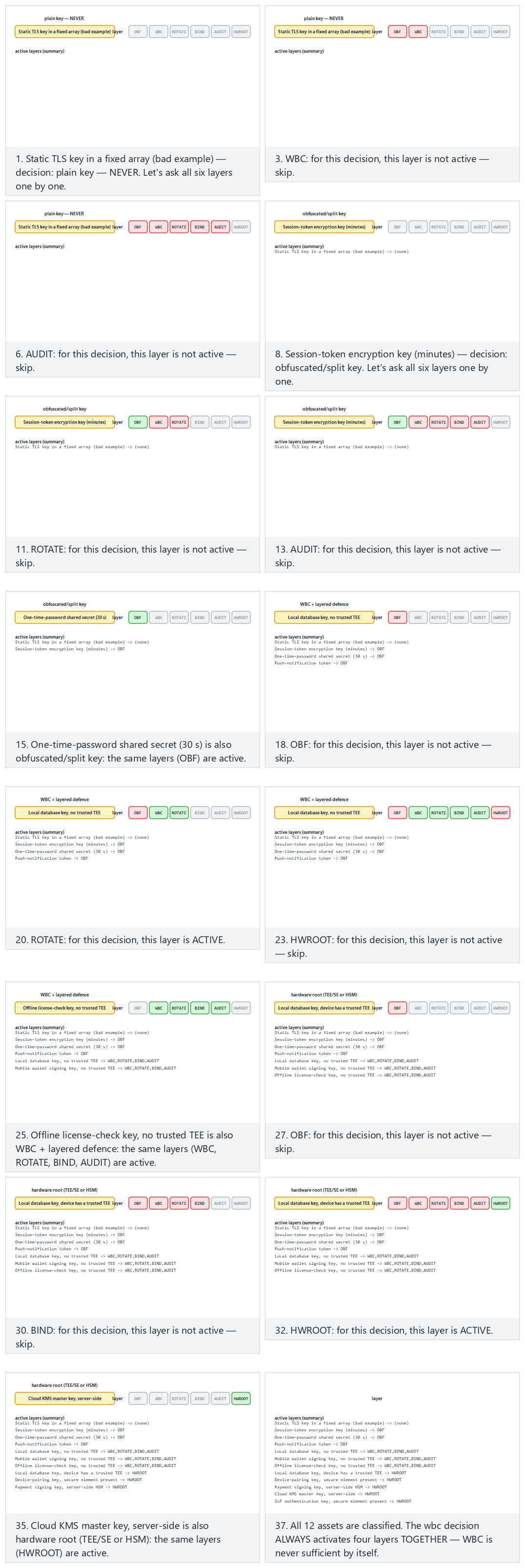

• Defence chain: TEE/SE/HSM → WBC (the product of the construction chain) → key rotation + device binding + server auditing. This chain comes together in §5 and §6.

Instead of memorising a term in isolation, try to remember which link of which chain it belongs to; the glossary at the end of the lecture (§8) is organised with the same logic.

Now to the real question: what do we do when the key is in the attacker's hands?

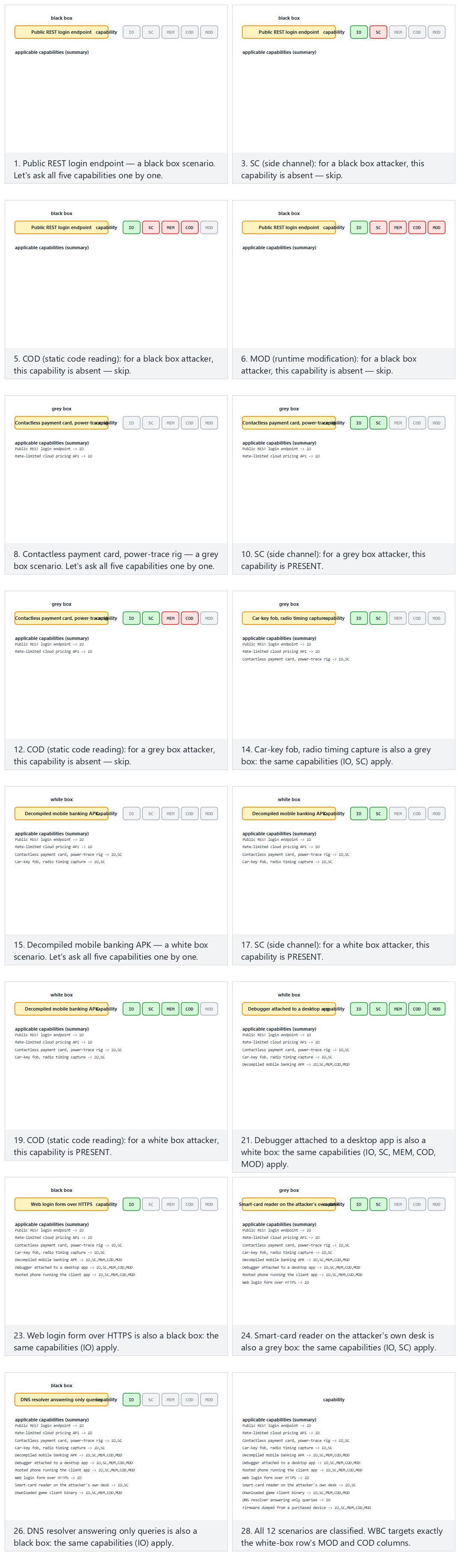

1. Three attacker models: black, grey, white box¶

In Weeks 3 and 10 we handled cryptography under the black box assumption: the attacker sees only the input and the output, and cannot see the key or the algorithm's internal state. The security proofs of standard algorithms such as AES, RSA, and HMAC rest on this assumption. But this assumption collapses the moment we hand the code over to the user.

Visibility increases from left to right; WBC tries to delay key extraction in the hardest (white box) model.

Whitebox cryptography (WBC) studies the security problems of an encryption algorithm running in a white box environment. In the source's own words: the WBC attacker model was defined by Chow and colleagues in 2002, and the attacker has the following capabilities (read these as what the defence has to counter):

• Observing execution: access to the instructions being processed at that moment, watching the algorithm's flow, seeing the memory in use.
• Controlling the environment / modifying it at runtime: tampering with program memory, running only part of the algorithm (e.g. one round of the cipher), changing if conditions, changing loop counters, injecting faults.

A concrete example: a session of a white-box attacker (step-by-step narrative)¶

Let's not leave the capability list above abstract; let's follow, step by step from start to finish, what an attacker actually does. The scenario is entirely conceptual and synthetic; no real tool command or real application name is used — the goal is to see the order and logic of the steps.

1. Acquisition. The attacker downloads the target mobile application's installation file (e.g. an .apk/.ipa) onto their own computer. This is the starting condition of the white-box model: the code is now on the attacker's own device, not on a server.
2. Static analysis. The attacker first examines the program without running it: unpacks the bundle, lists functions with a disassembler, scans text constants with a strings-like tool. The entropy scan we just defined in Section 0 also comes into play here: high-entropy blocks (possible keys/constants) are flagged.
3. Dynamic analysis — attaching a debugger. The attacker runs the application on their own device and attaches a debugger. They place a breakpoint at the point where the encryption function is called. This is the concrete counterpart of the "observing execution" capability in the attacker model.
4. Reading intermediate state. When the program stops at the breakpoint, the attacker reads the current registers and memory. If the key sits in a plain variable, it is directly visible right here. This is the concrete counterpart of the "reading memory" capability.
5. Partial execution / tampering. If they wish, the attacker can run only one round of the encryption and stop, skip an if condition, or manually change a value and continue (fault injection). This is the precondition for the DFA attack we'll see in Section 4.
6. Repetition and automation. The attacker automates these steps for thousands of different inputs (the instrumentation/emulator from Section 0), recording the intermediate values each time as an execution trace. This is the precondition for the DCA attack in Section 4.

Critical observation: in none of these six steps did the attacker listen to anything over the network; all of it happened on their own device, their own copy. The black-box model's assumption that "the attacker sees only input/output" is invalid from the start here — because the attacker is, at the same time, the user.

For comparison: what does a grey-box attacker's session look like?¶

Comparing the white-box attacker's six steps with the grey box makes the difference clear. The grey-box attacker works in an environment such as a smart card or an embedded device — the code is not in their hands, but the device is right at their fingertips:

1. Access. The attacker obtains a physical copy of the target device (e.g. a payment card). They cannot read the code or reach the memory (in this respect it resembles the black box) — but they can run the device and observe it from outside.
2. Setting up a measurement rig. The attacker sets up equipment that measures the power the card draws (or the electromagnetic signal it emits) while it runs. This is the physical counterpart of the side channel definition in Section 0.
3. Many runs. The attacker gives the card different inputs (e.g. different plaintexts), triggering the encryption operation for each, and records the power trace of each run — the physical counterpart of the white box's "execution trace", except the attacker is recording not the code but the device's externally measurable behaviour.
4. Statistical analysis (DPA). The collected traces are compared against different key hypotheses; the correct hypothesis turns out to be statistically correlated with a pattern in the traces (the correlation definition from Section 0). This is classic DPA.

Where's the difference? The white-box attacker accesses code and memory directly (with a debugger, in steps 3–4); the grey-box attacker never sees the code, only measures the device's physical side effects (power, time, electromagnetic emission). The common point is the logic of steps 3–4: many runs + statistical comparison. This shared logic explains why DCA, which we'll see in Sections 3 and 4 (the software form of DPA), is referred to as "whitebox's DPA" — DCA applies the grey box's statistical idea to the white box's directly observable execution traces; it needs no physical measurement rig at all.

How do these three models connect to previous weeks?¶

This distinction doesn't come out of nowhere; it is the natural continuation of the rules we built in Weeks 3, 9, and 10:

• Week 3 — Kerckhoffs's principle. We had learned the principle "security must rest on the secrecy of the key, not the secrecy of the algorithm". The white-box model takes this one step further: here both the algorithm and the key are in the attacker's hands; all that's left is the question "how expensive can I make extracting the key?"
• Week 9 — obfuscation rules (K-01…K-08). That week we saw rules hiding control flow (K-04), constants (K-02, K-07), and boolean values (K-08); all of them were code hardening, i.e. they made the white-box attacker's static analysis harder. WBC is a cryptography-specific, much stronger version of this: it buries not just the code, but the key itself, into the code's mathematics.
• Week 10 — algorithms and key management. The security proofs of standard AES/RSA/HMAC are written in the black-box model. What we'll learn this week is that when the same AES algorithm has to run in a white-box environment, that black-box security proof no longer holds — WBC tries to close this gap (partially, and expensively).

2. Why is the problem so hard?¶

The fundamental tension in the white box is this: to perform encryption, the program must be able to access the key; but the attacker sees everything the program sees. So the key must, at some point, be somewhere the attacker can also see. WBC's idea is to "bake" the key into the algorithm in such a way that it never exists explicitly: the key is embedded inside precomputed lookup tables, so that there is no byte sequence in memory of which you could say "this is the key".

This doesn't move confidentiality from cryptography to obscurity; it tries to spread the key across tables through a mathematical transformation. The goal is, again, a cost rule (as in Week 9): to make recovering the key from the tables much more expensive than storing it in plain form.

Why naive solutions collapse (rules)¶

To see why WBC is needed, you have to know the "easy" solutions that don't work, and the attacks that break them. Each one turns into a secure programming rule:

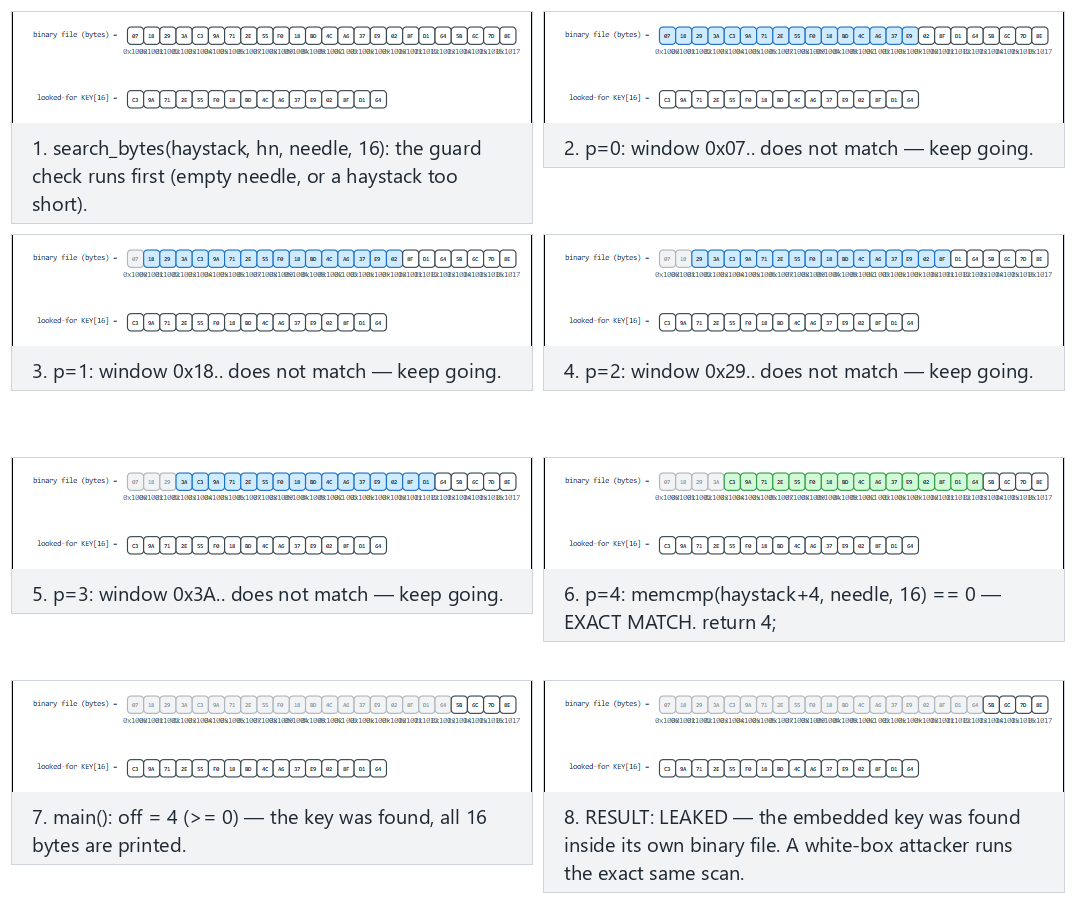

• Rule — Embedding the key in a fixed array. The most naive solution is to put the key into a static const uint8_t key[16] array. This is found within seconds with strings and an entropy scan (Shamir–van Someren's observation: cryptographic keys are high-entropy blocks and appear as such in the binary); it's then confirmed with a debugger. Consequence: a plain embedded key is not a key protection.
• Rule — "Scrambling" the key with only XOR/whitening. XOR-ing the key with a mask and storing it doesn't work either: the mask is also in the binary; if the program can undo it, so can the attacker.
• The code-lifting threat. Even if WBC buries the key in tables, the attacker can copy, as-is, the piece of code (tables + interpreter) that performs encryption/decryption without ever extracting the key, and use it in their own program. They steal its function without ever knowing the key. Consequence: it isn't enough for WBC to say "I hid the key" on its own; code lifting requires device/version binding (Section 4) as a counter.
• Rule — Forgetting the "test/debug key". A very common real-world mistake: during testing, for convenience, a developer puts a fixed "test key" in place of the real key (something like static const uint8_t k[16] = {0x00, 0x01, ...}, or plaintext in a configuration file), and then forgets to move it out for production, or dismisses it as "temporary anyway". Consequence: this is exactly the same vulnerability as Section 2's first rule (a plain embedded key) — except the "test-only" label doesn't reduce the real risk. An assessor (Week 12) scans test/debug paths with the same rigour as production code.

Numeric micro-example: why doesn't "scrambling with only XOR" work?¶

Let's not leave the second rule above ("scrambling the key with only XOR/whitening doesn't work") hanging in the air; let's see it, step by step, with small but real bytes.

Setup. A developer decides that, instead of keeping the secret key byte k = 0x3C plain in the binary, they'll XOR it with a random mask and store that. Let the mask be m = 0x5A. The value stored in the code:

kodlanmis_k = k XOR m = 0x3C XOR 0x5A

Step 1 — Let's compute the XOR bit by bit.

0x3C = 0011 1100
0x5A = 0101 1010
      ----------- XOR
      = 0110 0110 = 0x66

So in the binary, kodlanmis_k = 0x66. The developer thinks "the key no longer looks plain, it's hidden".

Step 2 — The program itself must also contain the mask. At encryption time the program needs the real key; that is, somewhere it must perform this computation:

uint8_t k_gercek = kodlanmis_k ^ m;   /* m must also live somewhere in the binary! */

The constant m = 0x5A sits inside the binary too, right next to the constant kodlanmis_k = 0x66 (both are static data).

Step 3 — What the attacker does. The attacker reads both bytes from the binary (0x66 and 0x5A) and performs the same XOR themselves:

k = kodlanmis_k XOR m = 0x66 XOR 0x5A
  = 0110 0110
  ^ 0101 1010
  -----------
  = 0011 1100 = 0x3C        ← KEY FOUND AGAIN

Conclusion. Masking changes the key's bit pattern in the binary but doesn't change the protection: if the program can undo the mask, so can an attacker who can read the same computation. This is exactly the same lesson as the limit of Week 9's K-07 (static string/hard-coding) rule — encoding alone gains nothing if the decoding key sits right next to it.

Code lifting — a bit deeper¶

Above we defined code lifting: the attacker copies the tables and the interpreter that runs them as-is, without ever extracting the key, and uses them in another program. Let's make concrete, with an example, why this is a serious threat:

The reason this is specific to WBC is this: in a normal program (key in a plain variable), the attacker can already extract the key and use it wherever they like; there's no need for code lifting. In WBC, the key may be unextractable (if the external encodings are strong), but the tables still form a working machine — and copying a working machine is, most of the time, much easier than solving its mathematics. Week 9's K-06 (call and dependency hiding) rule helps a little here (it makes the routine harder to find), but isn't sufficient on its own — once the routine is found, it can still be copied. The real solution is device/ version binding, which we'll see in Section 5: the tables only produce a meaningful result in a specific context (e.g. an input/output mixed with a device identifier).

Is WBC the same thing as Week 9's "code hardening"?¶

These two are often confused, because both work toward the goal of "making things harder for the attacker". But what they make harder is different:

Why are they used together? Because they complement each other: WBC buries the key in tables, and code hardening makes it harder to read how the code that calls these tables works (e.g. K-06 makes finding the whitebox routine harder, K-04 makes tracking which table is called when harder). The sentence we quoted from the source guide in Section 1 says exactly this: what protects WBC is being together with code hardening and RASP.

Cost balance: the attacker wins cheaply while the defender pays dearly¶

Let's close this section with a cost observation, because it's a pattern that will repeat in every section this week:

This asymmetry (if the defender takes a cheap measure, the attacker also breaks it cheaply) is the reason whitebox cryptography exists: the goal is to raise the attacker's cost as much as possible for a cost the defender can accept — never to bring it down to zero.

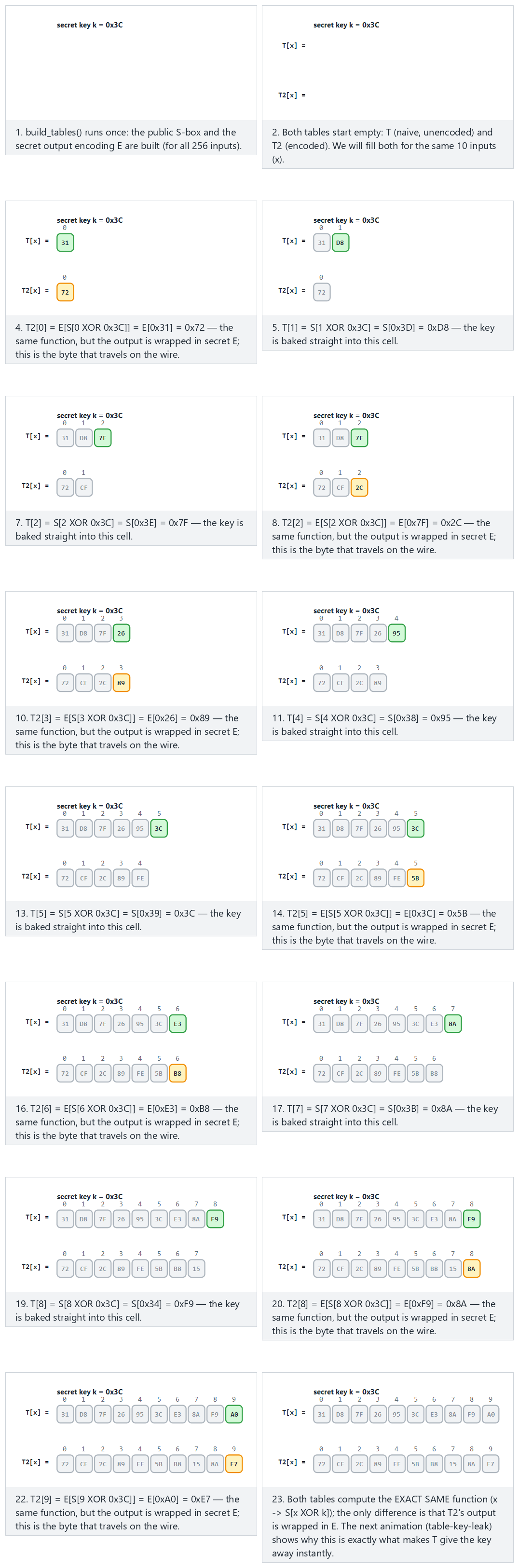

3. How does table-based WBC work? (Chow AES, conceptually)¶

The classic idea of WBC is Chow and colleagues' 2002 AES implementation. Its detailed mathematics (finite-field operations, matrix constructions) will not be asked in this course's exam; but you need to understand its idea, and especially its cost and its limit. We proceed step by step and conceptually.

Step 1 — Partial evaluation: "bake" the key into a table¶

In one round, AES first XORs the state byte with the round key, then passes it through the S-box. For a fixed key, these two operations can be merged into a single lookup table:

Normal:   output = S-box[ x XOR k ]     (k is the round key's byte)
WBC:      T[x] = S-box[ x XOR k ]      → a 256-entry table, k is INSIDE the table

Now there's no variable called k in the code anymore; k is embedded in the table's contents. But this is insecure on its own: the attacker can compare the table against the S-box and recover k (the table is the S-box shifted by x XOR k). That's why tables get encoded.

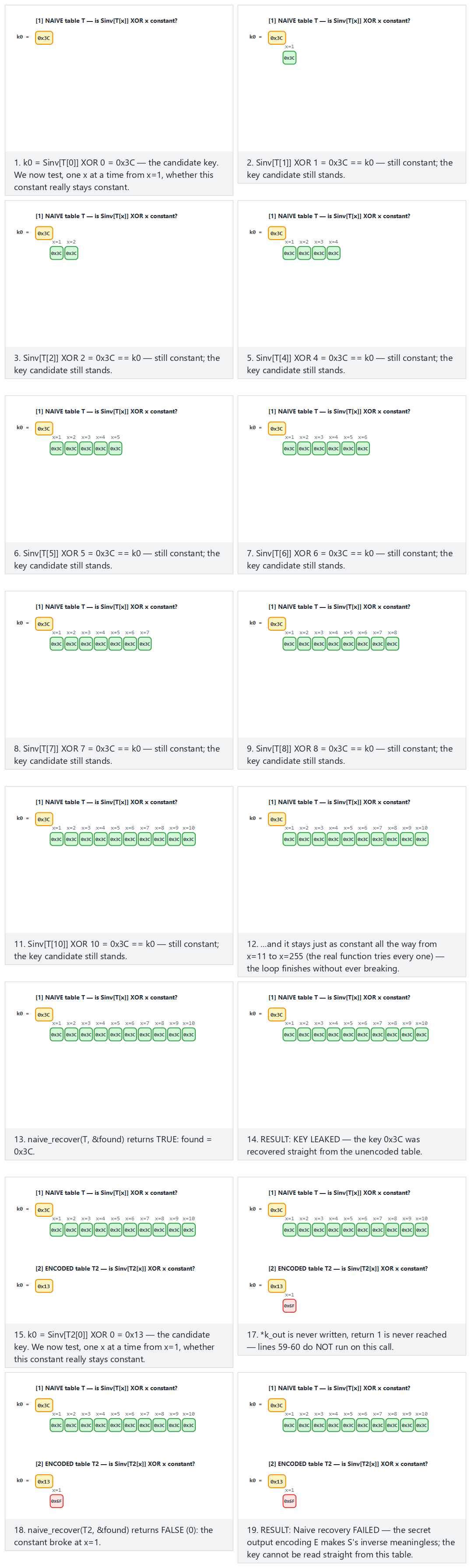

Numeric micro-example: how does the key leak from the table? (end to end)¶

Let's not leave the sentence above ("the attacker can recover k") hanging; let's do it step by step, with real numbers. All we have is this: the publicly known AES S-box, and the table the attacker reads from the binary.

Setup. Let the secret key byte be k = 0x3C (the attacker does not know this). The developer has applied Step 1 and produced this table: T[x] = S-box[x XOR k].

Step 1 — Read a single value from the table. The attacker looks at the entry x = 0x00:

T[0x00] = S-box[0x00 XOR 0x3C] = S-box[0x3C] = 0xEB

That is, the value they read in the binary: T[0x00] = 0xEB.

Step 2 — Invert the S-box. The S-box is public and one-to-one; its inverse is also known:

S-box⁻¹[0xEB] = 0x3C        (because S-box[0x3C] = 0xEB)

Step 3 — Solve for the key. Since, by definition, S-box⁻¹[T[x]] = x XOR k:

x XOR k = 0x3C
0x00 XOR k = 0x3C
k = 0x3C XOR 0x00 = 0x3C        ← KEY FOUND

Conclusion. The attacker found the key with a single table entry, without even trying all 256 possibilities. Saying "the key doesn't appear in the code" is not the same as saying "the key is protected".

So what does encoding change? If we wrap the table in a hidden bijection G: T'[x] = G( S-box[x XOR k] ). The attacker can no longer compute S-box⁻¹[T'[x]], because they would first need to remove G, but they don't know G. Step 2 breaks, so Step 3 doesn't work either.

A fully hand-built example: a 4-element "toy S-box"¶

The real AES S-box has 256 entries; scanning all of it by hand is not practical (above we made do with a single entry). Now let's shrink the task down to a 4-element toy S-box, and carry out a full attack where all four entries of the table are computed by hand, start to finish. The idea is exactly the same; it's just small enough to follow by hand.

Setup. Our inputs are 2 bits: x ∈ {0, 1, 2, 3} (binary: 00, 01, 10, 11). Our toy S-box is a fixed table that scrambles these four values in a one-to-one, onto fashion (a permutation, Section 0):

Check: the outputs are {3,1,0,2} — that is, the whole set {0,1,2,3}, each exactly once. So S is a bijection (Section 0), just like the real AES S-box.

Let our secret key (which the attacker doesn't know) be k = 2 (binary: 10).

Step A — Let's build the table T[x] = S[x XOR k] by hand for all four inputs.

x=0:  0 XOR 2 = 10 (2)   →  S[2] = 0     →  T[0] = 0
x=1:  1 XOR 2 = 11 (3)   →  S[3] = 2     →  T[1] = 2
x=2:  2 XOR 2 = 00 (0)   →  S[0] = 3     →  T[2] = 3
x=3:  3 XOR 2 = 01 (1)   →  S[1] = 1     →  T[3] = 1

Result: the exact table the attacker reads in the binary is T = [0, 2, 3, 1] (i.e. T[0]=0, T[1]=2, T[2]=3, T[3]=1).

Step B — Let's derive the inverse of the S-box. Since S is public, its inverse can also be computed: we read the question "which input produced which output?" backwards from the S table (S[0]=3 means S⁻¹[3]=0, and so on):

Step C — Let the attacker verify the key across all FOUR inputs. The rule is exactly the same as Step 3 in the real AES example: S⁻¹[T[x]] = x XOR k, hence k = x XOR S⁻¹[T[x]].

x=0:  T[0]=0  →  S⁻¹[0]=2   →  k = 0 XOR 2 = 2
x=1:  T[1]=2  →  S⁻¹[2]=3   →  k = 1 XOR 3 = 2      (01 XOR 11 = 10)
x=2:  T[2]=3  →  S⁻¹[3]=0   →  k = 2 XOR 0 = 2
x=3:  T[3]=1  →  S⁻¹[1]=1   →  k = 3 XOR 1 = 2      (11 XOR 01 = 10)

All four inputs converge on the same key (k = 2). This is the small-scale, exact counterpart of scanning all 256 entries in real AES: the attacker could have made do with a single entry (as we did in the real AES example above), but consistency (all inputs converging on the same k) additionally confirms the result.

Once internal encoding is added: why does the same attack collapse?¶

Now let's apply, again by hand, the internal encoding we mentioned (in Step 3, which we'll get to shortly — not the next subsection) on the same toy example. We wrap the table with an unknown bijection G: T'[x] = G(T[x]).

Let's define G (the attacker doesn't know it):

Check: the outputs are {1,3,0,2} — again the whole of {0,1,2,3}, so G is also a bijection.

Let's build the table T'[x] = G(T[x]) (applying G on top of the earlier table T = [0, 2, 3, 1]):

T'[0] = G(T[0]) = G(0) = 1
T'[1] = G(T[1]) = G(2) = 0
T'[2] = G(T[2]) = G(3) = 2
T'[3] = G(T[3]) = G(1) = 3

Result: T' = [1, 0, 2, 3]. This is now what the attacker sees in the binary; not T.

The attacker tries the same three steps (A–C) again — they still don't know that G exists, so they proceed again under the assumption S⁻¹[T'[x]] = x XOR k:

x=0:  T'[0]=1  →  S⁻¹[1]=1   →  k_tahmin = 0 XOR 1 = 1
x=1:  T'[1]=0  →  S⁻¹[0]=2   →  k_tahmin = 1 XOR 2 = 3      (01 XOR 10 = 11)
x=2:  T'[2]=2  →  S⁻¹[2]=3   →  k_tahmin = 2 XOR 3 = 1      (10 XOR 11 = 01)
x=3:  T'[3]=3  →  S⁻¹[3]=0   →  k_tahmin = 3 XOR 0 = 3

Result: 1, 3, 1, 3 — the four inputs give FOUR DIFFERENT (and mutually contradictory) "keys", and not one of them even equals the real key, 2. The "all inputs converge on the same key" consistency test from Step C fails outright here — the attacker realises the table they have is no longer of the simple form S[x XOR k], but since they don't know G, they cannot extract k this way.

Let's see, with a small table, how DCA collects its traces¶

In Section 0 we defined the terms execution trace, instrumentation, and correlation; the DCA (Differential Computation Analysis) attack, which we'll cover in full in Section 4, combines them. Here let's see the attack's data-collection mechanism, on the same toy table, with a small tracing table. The goal isn't to carry out the attack, but to show why it needs a strategy different from the algebraic Steps A–C.

What would happen without encoding first? (the basic idea) DCA's logic is this: a key hypothesis (k_h) is chosen, and for every plaintext byte p, a prediction is made of what the real computation would produce (S[p XOR k_h]); this prediction is then compared against the actually observed intermediate value. Without encoding (i.e. while the T table is directly visible), this comparison can be done with an exact match:

The correct hypothesis (k_h=2) matches 4/4 (by definition — because T[p] is exactly S[p⊕2]); the wrong hypothesis (k_h=0) matches 0/4. Without encoding, telling the correct key apart from the wrong ones is this easy.

Now let's put the encoding (T') back — and test the same two hypotheses:

Striking result: with the encoding in place, the correct hypothesis also gets 0/4, and the wrong hypothesis also gets 0/4 — because of the hidden G, the exact-match test can no longer tell the correct one from the wrong one. This is proof both of why the statement "internal encoding stops the attack" is true, and of why DCA is not a simple exact-match test.

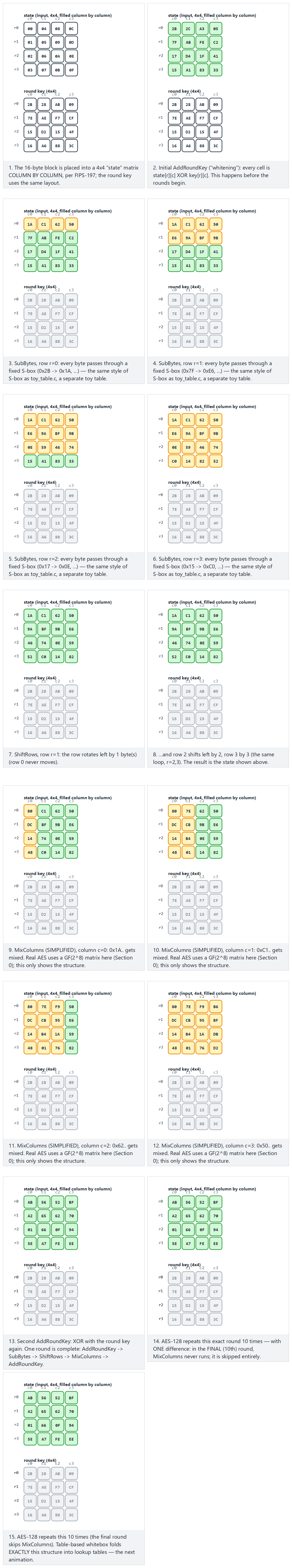

Step 2 — Merge and expand the tables (T-box + MixColumns)¶

Instead of a single byte mapping, the S-box is merged with AES's linear mixing step (MixColumns); this yields larger tables (T-boxes) that produce a 32-bit output from an 8-bit input. The XOR operations between bytes are also turned into small (4-bit) XOR tables. This way, the entire round turns into a network of lookup tables; nowhere does an explicit arithmetic key operation appear.

Let's see the idea at toy scale: merging two operations into a single table¶

Real T-boxes (S-box + MixColumns) carry an 8-bit input and a 32-bit output; following them by hand isn't practical. But we can demonstrate the idea of "merging two separate operations into one table" with a small extension on top of our toy S-box.

Normally, in a non-whitebox implementation, two separate steps run for input x:

Step 1: y = S[x XOR k]        (our toy S-box, with the key)
Step 2: z = y XOR c            (c: a fixed "mixing" value coming from the next round, e.g. c = 1)

If these two steps run as two separate instructions, the attacker can separately observe the intermediate value y in a debugger — each step is its own observation point on its own. The T-box idea is to pre-bake these two steps into a single table:

Merged table: U[x] = S[x XOR k] XOR c

Let's take k = 2, c = 1 and build U[x] for the four inputs (recall our earlier table T[x] = S[x XOR k], [0,2,3,1] — we're just adding XOR 1 at the end):

U[0] = T[0] XOR 1 = 0 XOR 1 = 1
U[1] = T[1] XOR 1 = 2 XOR 1 = 3      (10 XOR 01 = 11)
U[2] = T[2] XOR 1 = 3 XOR 1 = 2      (11 XOR 01 = 10)
U[3] = T[3] XOR 1 = 1 XOR 1 = 0

Result: U = [1, 3, 2, 0]. Now neither an S[...] call nor a separate XOR c instruction appears in the code — both are collapsed into a single table read (U[x]). The number of intermediate steps the attacker can see in the debugger goes down: where there used to be two observation points (y after Step 1, z after Step 2), there is now only one (U[x]).

In real AES this idea is applied at a much larger scale: the entire round (16-byte S-box + MixColumns + round key addition) turns into a network of interconnected T-boxes; the number of points where the attacker could watch intermediate steps one by one, which was in the dozens in plain code, drops sharply once it's baked into tables — but it doesn't reach zero, because the transitions between tables are still observable. Full protection comes from the encodings of Steps 3–5.

Step 3 — Internal encodings¶

A hidden bijection (a one-to-one, onto mapping) is applied to the output of every table, and its inverse is applied at the input of the next table. The encodings of consecutive tables cancel each other out; the result is correct, but the intermediate values are scrambled. This aims to stop an attacker examining a single table in isolation.

Let's verify the "the result is correct" claim by hand¶

Let's not leave the sentence above ("the encodings cancel each other out, the result is correct") as a mere claim; let's prove it with our toy example. Recall the tables we built earlier: T = [0, 2, 3, 1] (the real intermediate values) and T' = G(T) = [1, 0, 2, 3] (Table 1's encoded output, what the attacker sees).

The next table in the chain (Table 2) takes T'[x] as its input. To produce the correct result, it must first undo the encoding, i.e. apply G⁻¹. Let's derive G⁻¹ (the inverse of G — which output came from which input):

Let's compute G⁻¹(T'[x]) for all four inputs and compare it against T[x]:

x=0:  G⁻¹(T'[0]) = G⁻¹(1) = 0   ==  T[0] = 0   ✓
x=1:  G⁻¹(T'[1]) = G⁻¹(0) = 2   ==  T[1] = 2   ✓
x=2:  G⁻¹(T'[2]) = G⁻¹(2) = 3   ==  T[2] = 3   ✓
x=3:  G⁻¹(T'[3]) = G⁻¹(3) = 1   ==  T[3] = 1   ✓

G⁻¹(G(T[x])) = T[x] is confirmed for all four of the four inputs. This is the full proof of Step 3's claim: as soon as Table 2 receives its input, it applies G⁻¹ to recover the real intermediate value (T[x]) and continues the computation from the right place — the result comes out correct, as if the encoding never existed. But this recovery happens hidden, inside Table 2; if the attacker only sees T'[x] (Table 1's output) in isolation, they cannot perform this recovery because they don't know G — just as we saw in the "Once internal encoding is added" example at the start of Section 3.

Step 4 — Mixing bijections¶

In addition to internal encodings, linear mixing matrices over GF(2) (e.g. 8×8 and 32×32) are added; these spread information across tables, so that information leaking from a single table isn't meaningful on its own. Chow's table types (types I–IV in the literature) are the varieties of these encoded and mixed tables.

A tiny, hand-solvable GF(2) matrix example¶

Let's make the ideas of linear transformation and non-singular matrix, which we defined in Section 0, concrete. Consider this tiny matrix, which mixes a 2-bit value (v₁, v₀) (e.g. v₁v₀ = 11 in binary is the number 3):

M = | 1 1 |     new_v1 = v1 XOR v0
    | 0 1 |     new_v0 = v0

This is a linear transformation over GF(2): each new bit is a selected XOR of the old bits (recall the GF(2) definition from Section 0: addition = XOR).

Example input: v = 11 (i.e. v₁=1, v₀=1, decimal 3).

new_v1 = v1 XOR v0 = 1 XOR 1 = 0
new_v0 = v0        = 1

Result: M·v = 01 (decimal 1). Someone looking at this in isolation would say "the number 3 turned into 1", but without knowing which matrix did it, they cannot reverse it.

Is this transformation really invertible (non-singular)? Let's test it by applying M a second time to the same input — if we return to the original value, we confirm that M is its own inverse (an involution):

input: 01  (new_v1=0, new_v0=1)
new_v1' = 0 XOR 1 = 1
new_v0' = 1
result: 11  ← we're back to the original value (3)

Confirmed: M is a non-singular matrix (it has an inverse — here, coincidentally, itself), meaning information is not lost, only scrambled. The real mixing matrices in Chow AES are 8×8 and 32×32 in size and chosen at random, but the idea is exactly the same: each is chosen to be non-singular so that decryption can fully undo it; for the attacker, meanwhile, the direct relationship between the values in a single table and the real AES intermediate values becomes invisible, because the values have been spread across the XOR of many bits.

Step 5 — External encodings: F and G¶

At the outermost layer, the entire cipher is wrapped in two hidden bijections. As the source guide describes it, the whitebox AES operation is encapsulated with two random non-singular matrices called F and G (rank 128, a "random bijection"). So the network no longer computes plain AES, but G ∘ AES ∘ F⁻¹:

Input --F⁻¹--> [ network of encoded AES tables ] --G--> Output

This step is both the strongest protection and the biggest limitation:

• Strength: external encoding makes many algebraic/statistical attacks (BGE, DCA variants) that work by looking at the tables alone much harder; because the input/output the attacker sees is not standard AES's input/output.
• Limitation: G ∘ AES ∘ F⁻¹ is not standard AES. Without the other side (a server or another endpoint) knowing F and G and undoing them, the result is meaningless. That's why externally encoded WBC can only be used in a protocol where you control both ends; it may not be usable in a protocol such as EMV that expects standard AES.

External encoding in the toy example: why does it make code lifting harder?¶

Let's connect external encoding to the code-lifting threat we defined in Section 2. Let's add an input external encoding F to our toy whitebox; the attacker now feeds the function F(x), not x directly:

The full network now works in the form output = G(T[F⁻¹(input)]) (the input is first "decoded" with F⁻¹, the table is applied, the output is "encoded" with G). The application calling it must apply its own F encoding before sending the input, and undo its own G⁻¹ encoding after receiving the output — that is, the routine now works only under a contract known solely to this application.

Now let's look through the eyes of the attacker from Sections 2/6: even if the attacker copies the whitebox table network (T, G, and indirectly the effect of F⁻¹) as-is into their own program, if their own program doesn't encode the input with F and doesn't decode the output with G⁻¹, the result they get is a meaningless byte sequence — not a ciphertext/token in the form the original application expects. The attacker can steal the function but cannot use it correctly, because without knowing what F and G are, they would also have to copy them and apply them in the right order in their own program — and these are usually tightly woven into the rest of the application (through the device/version binding in Sections ⅘).

Cost: WBC is not free¶

Let's close the concept with a rule: WBC's cost is high. Chow AES's typical order of magnitude (from the literature):

Exercise: make your own order-of-magnitude estimate¶

To reinforce this sense of scale, let's compute the same idea once more by hand — this time with different, simple numbers. Suppose a developer uses a total of 160 tables in a whitebox AES implementation, and each table takes up an average of 900 bytes:

Total size ≈ 160 tables × 900 bytes/table = 144,000 bytes ≈ 140.6 KB

For comparison: in a standard (non-whitebox) AES implementation, the only thing that needs to be stored is a 16–32-byte key. So in this example, the whitebox tables take up roughly 4,500–9,000 times more space than the plain key (144,000 ÷ 32 = 4,500, 144,000 ÷ 16 = 9,000).

Closing Section 3: let's sum up the five steps in one sentence¶

Let's line up, once more, the five steps we built with our toy S-box, as a single chain: bake the key into a table (Step 1) → merge tables and reduce observation points (Step 2) → wrap every pair of tables in a hidden bijection (Step 3, which we proved by hand: G⁻¹(G(T[x])) = T[x]) → spread information with matrices (Step 4, which we saw with the GF(2) example) → seal it with an outer envelope that binds the whole routine to the application (Step 5). Each step closes the point where the previous step alone was insufficient — that's why all five are used together, and none of them alone is "WBC".

4. Attack history: why "all of them were broken" is a rule¶

The most honest way to position WBC correctly is to look at its history. We give the chronology below not to teach attacks, but to answer the question "how much can I trust this protection?" Every row is a countermeasure takeaway for the defender.

Why does the 2007 row matter? At first glance it might be dismissed with "DES got broken, we already use AES". But the real lesson is different: when AES-based whitebox was broken in 2004, part of the field thought "maybe the problem is in AES's own structure, let's try a different cipher (DES)". The breaking, in 2007, of DES-based designs (and their variants with external encoding added) too showed that: the problem wasn't specific to AES. The weakness was not in the identity of the cipher used, but in the mathematical structure of the internal encodings — just as in Karroumi's "more tables" attempt, changing the cipher didn't fix the root cause either.

Why is "more tables, more security" wrong? Let's unpack the takeaway in Karroumi's row a bit, because it may seem counter-intuitive. The "dual AES" idea was to run two independent AES computations in sequence or side by side, doubling the whitebox tables — the logic was: "the attacker now has to solve twice the tables, so it's twice as hard." But security is about the mathematical structure of the encodings, not the number of tables. If the additional tables also use the same kind of (affine) encodings, a BGE-like algorithm solves them the same way too — it just needs a bit more computation (~2²²), which doesn't make the design unbreakable. This is a counterexample to Section 3's cost discussion: here, raising the cost (more tables) did not raise the security, because what was increased was not the point where the attacker is actually constrained (the structure of the encoding).

Why do DCA and DFA matter? Because they don't try to solve the design's hidden mathematics. DCA collects a trace of the intermediate values produced while running, and extracts the key with statistical correlation, just as in a hardware power analysis (DPA); internal encodings mostly don't disturb this statistic. DFA, meanwhile, injects a fault into a value at runtime and computes the key back from the corrupted output. Both work "without opening the box" — which is why they also hit new designs.

The BGE attack: how did the first break happen? (conceptual)¶

Looking at it today, Chow's 2002 design might look "solid": every table is wrapped in a hidden bijection (like G in Section 3), and an attacker examining the tables one by one finds values that look random. BGE's (2004) idea was this: the internal encodings Chow used were not random bijections, but mathematically more structured (linear + constant, i.e. affine) transformations. When a transformation is affine, the algebraic relationships between neighbouring tables turn into a solvable system of equations; BGE recovered the encodings one by one with an algorithm that solves this system (called an "affine equivalence algorithm" in the literature) — it got past the exact point we called, in Section 3, "Step B collapses because the attacker doesn't know G", by exploiting G's special (affine) structure.

DFA: how does fault injection turn into an attack? (conceptual, the software form of classic DFA)¶

Recall step 5 of the attacker's session in Section 1: the white-box attacker can modify an intermediate value at runtime. Classic (hardware) DFA is a long-known family of techniques against AES; the 2015 study in the whitebox context ("Unboxing the White-Box") carries the same idea into software. Its step-by-step logic:

1. Reference run. The attacker has a plaintext of their choosing encrypted, and records the correct ciphertext (no fault).
2. Faulty run. They have the same plaintext encrypted again, but this time, at runtime (using the "partial execution/tampering" capability from Section 1), they deliberately inject a fault into an intermediate value at a specific round (e.g. flipping a byte). They record the faulty ciphertext.
3. Taking the difference. The correct and faulty ciphertexts are compared. The difference between them depends on the intermediate value at the point where the fault was injected, and hence on the key material used at that point — the effect of the fault is not random; because of the non-linear structure of AES's final rounds, it is a difference that carries information about the key.
4. Repeat and narrow down. Steps 1–3 are repeated with different fault points/values; each repetition narrows down the possible key candidates, eventually converging on a single key.

Why is this a problem specific to whitebox? Because DFA doesn't care at all about the design's internal encodings (G, F, mixing matrices) — it only cares about the difference between input/output pairs. All the effort we put in during Section 3 (internal encoding, mixing matrix, external encoding) does not eliminate the "the difference carries information about the key" relationship in DFA's step 3 — because even though the encodings stay fixed, AES's own mathematics (the S-box's non-linearity) is still there.

WhibOx: why does an independent trial matter?¶

WhibOx is a series of competitions in which academics and companies submit their own WB-AES designs publicly, and researchers from all over the world try to break them. Here's why this matters: a design that a company's own internal team tested and says "wasn't broken" is not at the same level of trust as a design placed in front of independent, numerous, and motivated attackers that says "wasn't broken". WhibOx provides the latter. This is the whitebox counterpart of the "independent evaluation" idea we'll see in Week 12.

Three commonly confused abbreviations: BGE, DCA, DFA¶

With weak background knowledge it's very easy to mix up these three abbreviations — all three get mentioned under the heading "breaking whitebox". The table below gives the one question that separates them:

Countermeasures (defence rules)¶

Research didn't stop; countermeasures against DCA/DFA were developed. But none of them say "now it's secure"; all of them raise the cost:

• Static randomness and non-linear masking (e.g. Biryukov–Udovenko 2018): tries to break the linear correlation that DCA relies on.
• External encoding (F, G): makes DCA/DFA/BGE harder — but with the limitation we saw: it breaks standard AES compatibility.
• Layered defence: Week 9's obfuscation rules and Week 6's RASP (anti-debug, tamper and integrity checking) are placed around WBC; the goal is to make it harder for the attacker to collect traces (DCA) and inject faults (DFA).
• Key rotation and short lifetime: if the key is rotated often, the value of extracting any one key drops (Week 10, crypto-period).
• Device/version binding: against code lifting; the tables are only meaningful on a specific device/version.
• Server-side risk auditing: whatever the protection at the endpoint, evaluating the transaction separately on the server (rate limiting, anomaly detection, ATC/counter checking) is the last and most reliable defence.
• Moving to a hardware root: if possible, never put the key in software at all — TEE, secure element (SE), HSM (Section 5).

Which countermeasure makes which attack harder? (summary table)¶

Let's match the list above against the attacks — a countermeasure doesn't stop "everything", it makes a specific class of attack harder:

The attack's cost from the attacker's side: what does each technique require?¶

In Section 2 we talked about the defender's cost; now let's build the same table from the attacker's side. When judging "how effective" a countermeasure is, you also have to account for the level of access and skill the attack requires — because the goal of a defence isn't to make the attack impossible, but to make it unprofitable for most attackers by raising the required skill and effort.

5. WBC's place in layered defence¶

Let's clarify, as a secure programming rule, where to place WBC. The table below gives the strength/cost ordering of the options for protecting a key:

Let's unpack every row of the table one by one, because the exam may ask "which option is correct when" together with its justification:

• Plain key in a fixed array. As we saw in Section 2: found within seconds by entropy scanning and direct reading. Not acceptable in any production system.
• Obfuscated/split key. Techniques like Section 2's "scrambling with only XOR" example; since the decoding information sits in the same binary as the key, this adds no strength. Only acceptable for very low-value, very short-lived secrets (e.g. a temporary token that lasts seconds), because the attacker's gain is already limited.
• WBC + layered defence. As we saw in Sections 3–4, this spreads the key across tables mathematically; used not alone but together with key rotation + device binding + server auditing, it provides a moderate delay. The best option when there's no hardware root.
• TEE / Secure Element (SE). The key never surfaces in the open in normal operating-system memory; so it is structurally resistant to all software-based attacks (entropy scan, algebraic solution, DCA, DFA, code lifting). This is the reason to prefer it when the device supports it.
• HSM / SoftHSM. As we saw in the subsection just before in Section 5, this is the same idea's counterpart for the server side; in a real HSM the key never leaves the hardware, while in SoftHSM only the interface is the same — its assurance level is low (should not be used outside development/testing).

Worked example: applying the decision rule to three assets¶

Let's not leave the rule abstract; let's decide, in turn, for three different assets of a hypothetical (synthetic) mobile application. For each asset we'll ask three questions: (1) How high is the asset's value? (2) Is there a hardware root (TEE/SE) on the device / can it be trusted? (3) How often/how long will the asset be used?

Observed pattern: WBC appears in the table only in row 2 — that is, at the intersection of "no reliably present hardware root" and "value isn't low". In row 1, WBC is unnecessary cost; in row 3, WBC is unnecessary risk (since there's no need to put the key on the client at all, not putting it there is always safer).

What does "a hardware root exists but isn't trustworthy" mean?¶

There's a hidden assumption inside the decision in the second row of the table above, "TEE if available; otherwise WBC": the presence of a TEE does not mean it can be trusted. Let's unpack this:

• If the device has root/jailbreak access: many operating-system-level protections can be disabled. Because the TEE is a separate security boundary at the processor level, it's generally still resistant — but since the interfaces that manage access to the TEE are called from an untrusted operating system, extra care is needed to make sure the application is "using the TEE correctly".
• Old/low-cost device models: even if they claim TEE support, they may offer a TEE implementation that hasn't been adequately tested by the manufacturer, or that is out of date.
• A variable the application can't control: a mobile application cannot individually verify the thousands of different device models it runs on; so treating "TEE present" as unconditionally trustworthy is risky.

Practical conclusion: a realistic design doesn't say "definitely secure if there's a TEE"; it prefers the TEE, but doesn't entirely drop the rest of Section 5's layers (key rotation, server-side risk auditing) even when there is a TEE — it may just apply them less heavily than in the pure-software (WBC) case. This is the "single layer = fragile layer" rule (Section 6) applied even to the hardware root.

SoftHSM and PKCS#11 (a server-side bridge, from Week 10)¶

In Week 10 we mentioned PKCS#11 and SoftHSM for key storage. On the server side, the key is kept behind a standard PKCS#11 interface; the application never sees the key's value, it only says "sign/encrypt this". SoftHSM is a software emulation of a real HSM; it offers the same interface, so it's used for development and testing, but it provides no real hardware protection. As a counterpart to WBC's problem at the endpoint (client), this is the answer to the key problem on the server.

How is a signing request processed behind PKCS#11, step by step?¶

To make this concrete, let's follow, step by step, the moment a server-side application has a transaction signed (a conceptual flow; not a real sequence of API calls):

1. The application prepares a request. It says "sign this 32-byte digest with key-id=7". The application never sees the key's value, it only refers to it by an ID.
2. The PKCS#11 layer forwards the request to the module. The request goes, over the standard PKCS#11 interface, to either a real HSM or (in a development/test environment) SoftHSM.
3. The module uses the key within its own boundary. The module (HSM or SoftHSM) performs the signing operation with the private key corresponding to key-id=7 inside itself; the private key never leaves the module.
4. Only the result is returned. Only the signature (the result) is returned to the application; the key itself never travels in plain form, over the network or between memory spaces.

This is exactly where the difference between a real HSM and SoftHSM comes into play: in a real HSM, step 3 happens inside a tamper-resistant hardware chip that can't be reached from outside — even an operating-system-level attacker cannot extract the key. In SoftHSM, the same step 3 runs in the server's own memory, as an ordinary process; the interface (API) is the same, but the assurance level underneath is completely different — an attacker who compromises the server can also reach SoftHSM's memory space.

6. Mistake → attack → protection (summary scenario)¶

Let's gather this week's rules into a single story (synthetic, for defensive purposes):

1. Flawed design: the client application embeds a data-encryption key as static const uint8_t k[16].
2. Attack (conceptual): strings and an entropy scan find the high-entropy 16-byte block; a debugger confirms that this block is used as the key in the encryption call. The key comes out within minutes.
3. Protection (layered):
4. Move the key to TEE/SE if possible; otherwise bury it in WBC tables (no plain byte array left).
5. Wrap WBC in Week 9's obfuscation rules and Week 6's RASP (anti-debug, tamper detection); this makes it harder for DCA to collect traces and for DFA to inject faults.
6. Bind to the device/version: so the tables don't work when copied to another device (code lifting).
7. Rotate the key frequently (a short crypto-period) and apply risk auditing on the server.
8. The risk that remains, honestly: a sufficiently determined attacker can still extract the key on a single device; but now breaking one copy doesn't open up the whole system, and the extracted key's lifetime is short.

Second scenario: layers against code lifting (synthetic)¶

Let's work through the same structure, this time against the code-lifting threat we defined in Section 2 — because this threat corresponds to a different class of mistake than "embedding the key plainly", and requires different layers.

1. Flawed design. A digital content application (synthetic: a "licence verification" component) builds its whitebox AES routine without external encoding (only with the internal encoding + mixing matrices from Section 3). The routine is designed like an independent function that could be called from any application: its input/output is the same shape as standard AES input/output (the "without external encoding, it computes the AES function exactly" situation from Section 3, Step 5).
2. Attack (conceptual). The attacker doesn't even try to extract the key (no need for BGE/DCA/DFA). Instead, they copy the whitebox tables and the code that calls them as-is, and paste them into their own fake application. The fake application can now produce valid licence responses — without ever knowing the key, purely by stealing the function.
3. Protection (layered).
4. Add external encoding (F, G) (Section 3, Step 5): bind the routine's input/output to an application-specific form; the routine no longer computes "generic AES", it only produces a meaningful result with the encoded input/output this specific application expects.
5. Add device/version binding (Sections ⅘): derive the external encoding's parameters from the device identity or version information; when the tables are copied to another device, let them produce a different (wrong) result.
6. Add server-side verification: have the licence response checked separately on the server (e.g. flag the same licence being used from an unexpected number of devices as an anomaly).
7. The risk that remains, honestly. External encoding and device binding make code lifting harder by making it device-specific; but if the attacker compromises that very device (e.g. clones the entire device), they can still obtain a working copy. That's why the server-side check in step 3 remains the last line of defence — just as in the first scenario.

A rough timeline for both scenarios¶

Without claiming numerical precision, it's useful to give a sense of scale for "how long does each step take" — in the same spirit as the "cost of the attack" table in Section 4:

The shared lesson of the two scenarios¶

First let's put the two scenarios side by side and see their differences:

Both scenarios start with different mistakes (plain embedded key vs. routine without external encoding) and proceed with different initial attacks (entropy scan/algebraic solution vs. direct copying), but they end in the same place: a single technical layer (only WBC, only device binding, only server auditing) is never enough on its own in either case. This confirms the pattern the lecture has been working with from the start:

• Week 3: "Confidentiality is cryptography's job, don't rely on the secrecy of the algorithm" (Kerckhoffs).
• Week 9: "A single obfuscation rule isn't enough, layer K-01…K-08."
• Week 11 (this week): "A single whitebox design isn't enough; layer it with key rotation + device binding + server auditing + (if possible) a hardware root."

The shared sentence of all three weeks: "a single layer = a fragile layer."

This week's big picture: a single look from start to finish¶

Before writing your project section, let's briefly review, start to finish, how this week's seven sections (0–6) form a single story. The goal isn't to teach anything new, but to let you see once more how what you've learned connects together.

1. Section 0 — Basic concepts. We started from scratch: encryption, key, S-box, lookup table, XOR, bijection, entropy, trace, correlation, GF(2)... None of these were specific to whitebox; they were all our tools. From Section 1 onward, we used these tools.
2. Section 1 — Three attacker models. We saw the black-box assumption from Week 3 collapse in client-side code. We followed the white-box attacker's six-step session (acquisition → static analysis → debugger → memory reading → tampering → automation). These six steps were the precondition for all the attacks in Section 4 (BGE = static, DCA/DFA = dynamic).
3. Section 2 — Why is the problem hard? We computed by hand why naive solutions (plain key, only XOR) collapse (the 0x3C XOR 0x5A example). We met the code-lifting threat. We saw that WBC is "Week 9's obfuscation rules applied to cryptography".
4. Section 3 — Chow AES, step by step. We built the five steps (partial evaluation → T-box merging → internal encoding → mixing matrix → external encoding) entirely by hand on a toy S-box: first we extracted the key consistently from all 4 entries (Steps A–C), then, once we added the internal encoding G, we saw the same attack give contradictory and wrong results, then we traced, with a table, why DCA overcomes this not with a simple exact-match test but with statistics. We closed the section by computing the order of magnitude of the size/speed cost.
5. Section 4 — Attack history. We learned to distinguish the BGE (mathematics), DCA (statistics), and DFA (sabotage) attacks from one another; we saw why WhibOx is an independent trial; we confirmed with a table that every countermeasure only makes specific attacks harder.
6. Section 5 — Place in layered defence. Through three concrete assets (session token, local DB key, payment-signing key) we decided when WBC is the right choice. We saw that SoftHSM provides only an interface, not the real assurance.
7. Section 6 — Two scenarios. We applied the same "mistake → attack → protection" skeleton to two different mistakes (plain key, routine without external encoding); both ended in the same lesson: a single layer is not enough.

Next step (Section 7): now you'll apply this knowledge to your own project — you'll pick a key and write, in your own words, the same chain for it (asset value → threat model → chosen layers → the risk that honestly remains).

7. Term project: this week (S8 — key-protection justification)¶

Add, to the S8 (crypto and keys) section of your project, a protection decision and rationale for at least one sensitive key:

1. Where the key sits, how it's protected (if not stored plainly: TEE/SE, WBC, obfuscation — which one and why).
2. If the protection isn't sufficient (e.g. you're pure software), state this explicitly and name the compensating layers: the key-rotation period, device/version binding, server-side risk auditing.
3. If you don't use one (e.g. you didn't implement WBC), give the reason why not (cost, a hardware root exists, asset value is low). A justified "we didn't use it" is a complete answer.

Worked example: a filled-in S8 rationale¶

To make what you'll write concrete, let's show, step by step, how to fill out the S8 section using a synthetic example project (don't copy this text verbatim; write according to your own project's assets):

Notice what's done right in this example: nowhere does the text say "we used whitebox, we're secure"; every sentence says which layer is placed against which threat and why it is sufficient/insufficient. This is what actually matters to an assessor.

Self-check: is your S8 draft ready?¶

Before you write/submit your project's S8 section, tick off this short list:

• Is the name of at least one sensitive key and what it protects clearly written?
• Is it stated where the key sits (TEE/SE, WBC, obfuscated, plain — which one)?
• If a pure-software protection (WBC or obfuscation) is used, are at least two compensating layers (rotation, device binding, server auditing, RASP) named?
• If a protection wasn't used, is the rationale (cost/no hardware root/low value) written explicitly — or was it silently skipped?
• Is there nowhere in the text a sentence like "WBC = secure" that contradicts this week's main rule?
• Is there no real key, password, or secret in the repo/examples (see the warning below)?

A weak and a strong S8 rationale, side by side¶

The most common feedback this week is that rationales are written too short and generic. Let's put a weak and a strong answer for the same asset side by side, and see the difference:

Short formula: asset name + where it's protected + against which threat + what its limitation is + compensating layers. If any one of these five elements is missing, the rationale is probably in the weak category.

Frequently asked questions (about S8)¶

8. Self-check¶

A quick review before the exam: glossary of terms¶

Before solving the self-check questions or sitting the exam, use the table below to review all of this week's terms at a glance. Each term points to the section where it was first defined — if you get stuck on a term, go back to that section and read it together with its context.

9. Resources and further reading¶

• The secure programming technical guide (course source) — the WBC attacker model and whitebox AES's position in a product; the "keys shall be secured and/or hidden" requirement.
• S. Chow, P. Eisen, H. Johnson, P. van Oorschot — "White-Box Cryptography and an AES Implementation" (SAC 2002) and WB-DES (DRM 2002) — the foundation of table-based WBC.
• B. Wyseur — "White-Box Cryptography: Hiding Keys in Software" (short introduction) — a student-friendly overview.
• Billet, Gilbert, Ech-Chatbi — the BGE attack (SAC 2004).
• Bos, Hubain, Michiels, Teuwen — "Differential Computation Analysis" (CHES 2016).
• Sanfelix, Mune, de Haas — "Unboxing the White-Box" (Black Hat EU 2015) — DFA/DPA.
• WhibOx competition results (2017–2024) — the status of published designs.
