CEN206 Object-Oriented Programming¶

Week-14 (Case Studies - Design Patterns & Refactoring in Practice)¶

Spring Semester, 2025-2026¶

Week-14 Overview¶

Case Studies - Design Patterns & Refactoring in Practice¶

Module	Topic
A	Real-World Design Pattern Applications
B	Case Study 1 -- E-Commerce Order Processing System
C	Case Study 2 -- Text Editor with Undo/Redo
D	Case Study 3 -- Notification System Refactoring
E	Best Practices & Anti-Patterns

Why Case Studies?¶

Design patterns and refactoring techniques are powerful tools, but their true value is seen in real-world applications.
Studying case studies helps us understand:
When to apply a pattern
How patterns work together in a system
What improvements they bring to code quality
Where refactoring makes the biggest impact

Module A: Real-World Design Pattern Applications¶

How Design Patterns Appear in Java Frameworks¶

Module A Outline¶

Real-World Design Pattern Applications¶

Design patterns are not just academic concepts. They are extensively used in production frameworks and libraries you use every day.

Singleton in Runtime.getRuntime()
Iterator in java.util.Iterator
Observer in EventListener
Factory Method in Calendar.getInstance()
Decorator in java.io Streams
Strategy in java.util.Comparator
Template Method in java.io.InputStream
Adapter in Arrays.asList()

A1. Singleton -- `Runtime.getRuntime()`¶

Pattern: Singleton ensures a class has only one instance and provides a global point of access.

Where it appears: java.lang.Runtime -- every Java application has exactly one Runtime object.

public class SingletonExample {
    public static void main(String[] args) {
        // Runtime uses the Singleton pattern
        Runtime runtime1 = Runtime.getRuntime();
        Runtime runtime2 = Runtime.getRuntime();

        // Both references point to the same object
        System.out.println(runtime1 == runtime2); // true

        // Use the singleton to get system info
        System.out.println("Available processors: "
            + runtime1.availableProcessors());
        System.out.println("Free memory: "
            + runtime1.freeMemory() + " bytes");
    }
}

A1. Singleton -- How `Runtime` Works Internally¶

The JDK implements Runtime as a classic Singleton:

public class Runtime {
    // Eager initialization -- instance created at class loading
    private static final Runtime currentRuntime = new Runtime();

    // Private constructor prevents external instantiation
    private Runtime() {}

    // Global access point
    public static Runtime getRuntime() {
        return currentRuntime;
    }

    public int availableProcessors() {
        // native implementation
    }

    public long freeMemory() {
        // native implementation
    }
}

Key takeaway: The JVM guarantees only one Runtime instance exists, which makes sense because there is only one runtime environment per application.

A2. Iterator -- `java.util.Iterator`¶

Pattern: Iterator provides a way to access elements of a collection sequentially without exposing its underlying representation.

Where it appears: Every Java Collection implements Iterable, which returns an Iterator.

import java.util.*;

public class IteratorExample {
    public static void main(String[] args) {
        List<String> languages = new ArrayList<>(
            Arrays.asList("Java", "Python", "C++", "Rust")
        );

        // Using the Iterator pattern explicitly
        Iterator<String> iterator = languages.iterator();
        while (iterator.hasNext()) {
            String lang = iterator.next();
            System.out.println(lang);
            if (lang.equals("C++")) {
                iterator.remove(); // safe removal during iteration
            }
        }

        // Enhanced for-loop uses Iterator behind the scenes
        for (String lang : languages) {
            System.out.println("Remaining: " + lang);
        }
    }
}

A3. Observer -- `EventListener`¶

Pattern: Observer defines a one-to-many dependency so that when one object changes state, all its dependents are notified.

Where it appears: Java's event handling system (AWT/Swing), java.util.EventListener, PropertyChangeListener.

import java.beans.PropertyChangeListener;
import java.beans.PropertyChangeSupport;

public class Stock {
    private String symbol;
    private double price;
    private PropertyChangeSupport support;

    public Stock(String symbol, double price) {
        this.symbol = symbol;
        this.price = price;
        this.support = new PropertyChangeSupport(this);
    }

    public void addObserver(PropertyChangeListener listener) {
        support.addPropertyChangeListener(listener);
    }

    public void setPrice(double newPrice) {
        double oldPrice = this.price;
        this.price = newPrice;
        // Notify all observers
        support.firePropertyChange("price", oldPrice, newPrice);
    }

    public double getPrice() { return price; }
    public String getSymbol() { return symbol; }
}

A3. Observer -- Using the Stock Example¶

import java.beans.PropertyChangeEvent;
import java.beans.PropertyChangeListener;

public class StockTrader implements PropertyChangeListener {
    private String traderName;

    public StockTrader(String name) {
        this.traderName = name;
    }

    @Override
    public void propertyChange(PropertyChangeEvent evt) {
        System.out.println(traderName + " notified: "
            + "Price changed from " + evt.getOldValue()
            + " to " + evt.getNewValue());
    }

    public static void main(String[] args) {
        Stock apple = new Stock("AAPL", 150.0);

        StockTrader trader1 = new StockTrader("Alice");
        StockTrader trader2 = new StockTrader("Bob");

        apple.addObserver(trader1);
        apple.addObserver(trader2);

        apple.setPrice(155.0); // Both traders get notified
        apple.setPrice(148.0); // Both traders get notified again
    }
}

Output:

Alice notified: Price changed from 150.0 to 155.0
Bob notified: Price changed from 150.0 to 155.0
Alice notified: Price changed from 155.0 to 148.0
Bob notified: Price changed from 155.0 to 148.0

A4. Factory Method -- `Calendar.getInstance()`¶

Pattern: Factory Method defines an interface for creating an object but lets subclasses decide which class to instantiate.

Where it appears: java.util.Calendar.getInstance() returns a locale-specific calendar implementation.

import java.util.Calendar;
import java.util.Locale;

public class FactoryMethodExample {
    public static void main(String[] args) {
        // Factory Method -- returns GregorianCalendar
        // for most locales
        Calendar cal1 = Calendar.getInstance();
        System.out.println("Default: "
            + cal1.getClass().getName());

        // Factory Method with Japanese locale
        // returns JapaneseImperialCalendar
        Calendar cal2 = Calendar.getInstance(
            new Locale("ja", "JP", "JP"));
        System.out.println("Japanese: "
            + cal2.getClass().getName());

        // The client code works with any Calendar
        System.out.println("Year: "
            + cal1.get(Calendar.YEAR));
        System.out.println("Month: "
            + (cal1.get(Calendar.MONTH) + 1));
        System.out.println("Day: "
            + cal1.get(Calendar.DAY_OF_MONTH));
    }
}

A5. Decorator -- `java.io` Streams¶

Pattern: Decorator attaches additional responsibilities to an object dynamically, providing a flexible alternative to subclassing.

Where it appears: The entire java.io stream hierarchy uses the Decorator pattern.

import java.io.*;

public class DecoratorExample {
    public static void main(String[] args) throws Exception {
        // Base component: FileReader
        // Decorator 1: BufferedReader adds buffering
        // Each decorator wraps the previous component
        try (BufferedReader reader = new BufferedReader(
                new FileReader("example.txt"))) {
            String line;
            while ((line = reader.readLine()) != null) {
                System.out.println(line);
            }
        }

        // Another example: OutputStream decorators
        // FileOutputStream -> BufferedOutputStream -> DataOutputStream
        try (DataOutputStream out = new DataOutputStream(
                new BufferedOutputStream(
                    new FileOutputStream("data.bin")))) {
            out.writeInt(42);
            out.writeDouble(3.14);
            out.writeUTF("Hello, Decorator!");
        }

        // Reading back with corresponding decorators
        try (DataInputStream in = new DataInputStream(
                new BufferedInputStream(
                    new FileInputStream("data.bin")))) {
            System.out.println("Int: " + in.readInt());
            System.out.println("Double: " + in.readDouble());
            System.out.println("String: " + in.readUTF());
        }
    }
}

A6. Strategy -- `java.util.Comparator`¶

Pattern: Strategy defines a family of algorithms, encapsulates each one, and makes them interchangeable.

Where it appears: java.util.Comparator allows changing the sorting algorithm at runtime.

import java.util.*;

public class StrategyExample {
    public static void main(String[] args) {
        List<String> names = new ArrayList<>(
            Arrays.asList("Charlie", "Alice", "Bob", "Diana")
        );

        // Strategy 1: Natural ordering (alphabetical)
        names.sort(Comparator.naturalOrder());
        System.out.println("Alphabetical: " + names);

        // Strategy 2: Reverse ordering
        names.sort(Comparator.reverseOrder());
        System.out.println("Reversed: " + names);

        // Strategy 3: By string length
        names.sort(Comparator.comparingInt(String::length));
        System.out.println("By length: " + names);

        // Strategy 4: Custom comparator using lambda
        names.sort((a, b) -> {
            int lastCharA = a.charAt(a.length() - 1);
            int lastCharB = b.charAt(b.length() - 1);
            return lastCharA - lastCharB;
        });
        System.out.println("By last char: " + names);
    }
}

A7. Template Method -- `java.io.InputStream`¶

Pattern: Template Method defines the skeleton of an algorithm in a method, deferring some steps to subclasses.

Where it appears: java.io.InputStream.read(byte[], int, int) calls the abstract read() method.

import java.io.InputStream;
import java.io.IOException;

// Custom InputStream demonstrating Template Method
public class RandomInputStream extends InputStream {

    private int remaining;

    public RandomInputStream(int size) {
        this.remaining = size;
    }

    // Subclasses MUST implement this single abstract method
    @Override
    public int read() throws IOException {
        if (remaining <= 0) return -1;
        remaining--;
        return (int) (Math.random() * 256);
    }

    // Template method in InputStream uses read() internally:
    // public int read(byte[] b, int off, int len) {
    //     for (int i = 0; i < len; i++) {
    //         int c = read();  <-- calls our implementation
    //         if (c == -1) break;
    //         b[off + i] = (byte) c;
    //     }
    // }

    public static void main(String[] args) throws IOException {
        try (RandomInputStream ris = new RandomInputStream(5)) {
            byte[] buffer = new byte[5];
            int bytesRead = ris.read(buffer, 0, 5);
            System.out.println("Read " + bytesRead + " bytes");
            for (byte b : buffer) {
                System.out.print((b & 0xFF) + " ");
            }
        }
    }
}

A8. Adapter -- `Arrays.asList()`¶

Pattern: Adapter converts the interface of a class into another interface clients expect.

Where it appears: Arrays.asList() adapts an array to the List interface.

import java.util.*;

public class AdapterExample {
    public static void main(String[] args) {
        String[] array = {"Java", "Python", "C++"};

        // Arrays.asList() adapts the array to a List interface
        List<String> list = Arrays.asList(array);

        // Now we can use List operations on the array
        System.out.println("Element at 1: " + list.get(1));
        System.out.println("Contains Java: "
            + list.contains("Java"));
        System.out.println("Index of C++: "
            + list.indexOf("C++"));

        // Modifications to the list affect the original array
        list.set(0, "Kotlin");
        System.out.println("Array[0]: " + array[0]); // Kotlin

        // Note: structural modifications throw exceptions
        // list.add("Rust"); // UnsupportedOperationException
        // list.remove(0);   // UnsupportedOperationException
    }
}

Module A -- Takeaway¶

Design Patterns Are Everywhere in Java¶

Pattern	Java Example	Purpose
Singleton	`Runtime.getRuntime()`	Single instance guarantee
Iterator	`Collection.iterator()`	Sequential access
Observer	`PropertyChangeListener`	Event notification
Factory Method	`Calendar.getInstance()`	Flexible object creation
Decorator	`BufferedReader(FileReader)`	Dynamic behavior addition
Strategy	`Comparator`	Interchangeable algorithms
Template Method	`InputStream.read()`	Algorithm skeleton
Adapter	`Arrays.asList()`	Interface conversion

Understanding these patterns helps you use Java APIs more effectively and design better software.

Module B: Case Study 1¶

E-Commerce Order Processing System¶

Module B Outline¶

E-Commerce Order Processing System¶

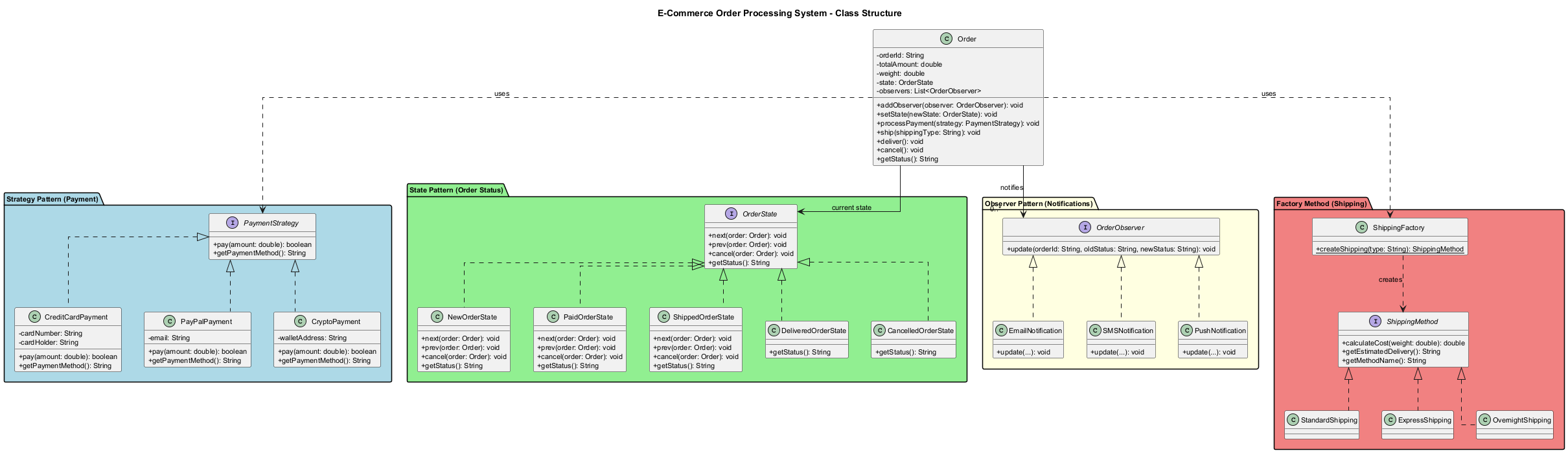

This case study demonstrates how multiple design patterns work together to solve real business problems.

Problem Description
Design Without Patterns (Naive Approach)
Applying the Strategy Pattern (Payment)
Applying the State Pattern (Order Status)
Applying the Observer Pattern (Notifications)
Applying the Factory Method Pattern (Shipping)
Complete Integrated System
Before/After Comparison

B0. E-Commerce System -- Pattern Overview¶

The following class diagram shows how four design patterns (Strategy, State, Observer, Factory Method) work together in the E-Commerce Order Processing System:

center

B1. Problem Description¶

Online Store Requirements¶

You are building an order processing system for an online store. The system must:

Accept multiple payment methods -- Credit Card, PayPal, Bank Transfer, Cryptocurrency
Track order status -- New, Paid, Shipped, Delivered, Cancelled
Send notifications -- Email, SMS, Push notification when order status changes
Support different shipping methods -- Standard, Express, Overnight, International

The system must be extensible -- new payment methods, shipping options, and notification channels should be easy to add.

B2. Design Without Patterns (Naive Approach)¶

public class NaiveOrderProcessor {
    public void processPayment(String type, double amount) {
        if (type.equals("creditcard")) {
            System.out.println("Processing credit card: $" + amount);
            // credit card specific logic...
        } else if (type.equals("paypal")) {
            System.out.println("Processing PayPal: $" + amount);
            // paypal specific logic...
        } else if (type.equals("banktransfer")) {
            System.out.println("Processing bank transfer: $" + amount);
            // bank transfer specific logic...
        } else if (type.equals("crypto")) {
            System.out.println("Processing crypto: $" + amount);
            // crypto specific logic...
        }
    }

    public void updateStatus(String orderId, String newStatus) {
        if (newStatus.equals("paid")) {
            // validate payment...
            sendEmail(orderId, "Your order has been paid");
            sendSMS(orderId, "Your order has been paid");
        } else if (newStatus.equals("shipped")) {
            // validate transition...
            sendEmail(orderId, "Your order has been shipped");
            sendSMS(orderId, "Your order has been shipped");
        }
        // ... more conditions
    }

    public void createShipping(String type, String orderId) {
        if (type.equals("standard")) { /* ... */ }
        else if (type.equals("express")) { /* ... */ }
        // ... more conditions
    }

    private void sendEmail(String id, String msg) { /* ... */ }
    private void sendSMS(String id, String msg) { /* ... */ }
}

Problems: Long if-else chains, hard to extend, violates Open/Closed Principle, tight coupling.

B3. Strategy Pattern -- Payment Methods¶

Goal: Encapsulate each payment algorithm so they can be swapped independently.

// Strategy interface
public interface PaymentStrategy {
    boolean pay(double amount);
    String getPaymentMethod();
}

// Concrete Strategy: Credit Card
public class CreditCardPayment implements PaymentStrategy {
    private String cardNumber;
    private String cardHolder;

    public CreditCardPayment(String cardNumber, String cardHolder) {
        this.cardNumber = cardNumber;
        this.cardHolder = cardHolder;
    }

    @Override
    public boolean pay(double amount) {
        System.out.println("Paid $" + amount
            + " with Credit Card ending in "
            + cardNumber.substring(cardNumber.length() - 4));
        return true;
    }

    @Override
    public String getPaymentMethod() {
        return "Credit Card";
    }
}

B3. Strategy Pattern -- More Payment Methods¶

// Concrete Strategy: PayPal
public class PayPalPayment implements PaymentStrategy {
    private String email;

    public PayPalPayment(String email) {
        this.email = email;
    }

    @Override
    public boolean pay(double amount) {
        System.out.println("Paid $" + amount
            + " via PayPal (" + email + ")");
        return true;
    }

    @Override
    public String getPaymentMethod() { return "PayPal"; }
}

// Concrete Strategy: Cryptocurrency
public class CryptoPayment implements PaymentStrategy {
    private String walletAddress;

    public CryptoPayment(String walletAddress) {
        this.walletAddress = walletAddress;
    }

    @Override
    public boolean pay(double amount) {
        System.out.println("Paid $" + amount
            + " via Crypto wallet " + walletAddress);
        return true;
    }

    @Override
    public String getPaymentMethod() { return "Cryptocurrency"; }
}

B4. State Pattern -- Order Status Transitions¶

Goal: Allow the order to change behavior when its internal state changes.

// State interface
public interface OrderState {
    void next(Order order);
    void prev(Order order);
    void cancel(Order order);
    String getStatus();
}

// Concrete State: New Order
public class NewOrderState implements OrderState {
    @Override
    public void next(Order order) {
        order.setState(new PaidOrderState());
        System.out.println("Order moved to PAID state.");
    }

    @Override
    public void prev(Order order) {
        System.out.println("Already at initial state.");
    }

    @Override
    public void cancel(Order order) {
        order.setState(new CancelledOrderState());
        System.out.println("Order has been CANCELLED.");
    }

    @Override
    public String getStatus() { return "NEW"; }
}

B4. State Pattern -- More States¶

public class PaidOrderState implements OrderState {
    @Override
    public void next(Order order) {
        order.setState(new ShippedOrderState());
        System.out.println("Order moved to SHIPPED state.");
    }

    @Override
    public void prev(Order order) {
        order.setState(new NewOrderState());
        System.out.println("Order moved back to NEW state.");
    }

    @Override
    public void cancel(Order order) {
        order.setState(new CancelledOrderState());
        System.out.println("Paid order CANCELLED. Refund initiated.");
    }

    @Override
    public String getStatus() { return "PAID"; }
}

public class ShippedOrderState implements OrderState {
    @Override
    public void next(Order order) {
        order.setState(new DeliveredOrderState());
        System.out.println("Order moved to DELIVERED state.");
    }

    @Override
    public void prev(Order order) {
        order.setState(new PaidOrderState());
        System.out.println("Order returned to PAID state.");
    }

    @Override
    public void cancel(Order order) {
        System.out.println("Cannot cancel shipped order.");
    }

    @Override
    public String getStatus() { return "SHIPPED"; }
}

B4. State Pattern -- Terminal States¶

public class DeliveredOrderState implements OrderState {
    @Override
    public void next(Order order) {
        System.out.println("Order already delivered.");
    }

    @Override
    public void prev(Order order) {
        System.out.println("Cannot revert a delivered order.");
    }

    @Override
    public void cancel(Order order) {
        System.out.println("Cannot cancel a delivered order.");
    }

    @Override
    public String getStatus() { return "DELIVERED"; }
}

public class CancelledOrderState implements OrderState {
    @Override
    public void next(Order order) {
        System.out.println("Cannot proceed from cancelled order.");
    }

    @Override
    public void prev(Order order) {
        System.out.println("Cannot revert a cancelled order.");
    }

    @Override
    public void cancel(Order order) {
        System.out.println("Order is already cancelled.");
    }

    @Override
    public String getStatus() { return "CANCELLED"; }
}

B5. Observer Pattern -- Notifications¶

Goal: Notify multiple channels (email, SMS, push) when order status changes.

// Observer interface
public interface OrderObserver {
    void update(String orderId, String oldStatus, String newStatus);
}

// Concrete Observer: Email Notification
public class EmailNotification implements OrderObserver {
    @Override
    public void update(String orderId, String oldStatus,
                       String newStatus) {
        System.out.println("[EMAIL] Order " + orderId
            + ": " + oldStatus + " -> " + newStatus);
    }
}

// Concrete Observer: SMS Notification
public class SMSNotification implements OrderObserver {
    @Override
    public void update(String orderId, String oldStatus,
                       String newStatus) {
        System.out.println("[SMS] Order " + orderId
            + ": " + oldStatus + " -> " + newStatus);
    }
}

// Concrete Observer: Push Notification
public class PushNotification implements OrderObserver {
    @Override
    public void update(String orderId, String oldStatus,
                       String newStatus) {
        System.out.println("[PUSH] Order " + orderId
            + ": " + oldStatus + " -> " + newStatus);
    }
}

B6. Factory Method -- Shipping¶

Goal: Create shipping objects without specifying their exact class.

// Product interface
public interface ShippingMethod {
    double calculateCost(double weight);
    String getEstimatedDelivery();
    String getMethodName();
}

// Concrete Products
public class StandardShipping implements ShippingMethod {
    @Override
    public double calculateCost(double weight) {
        return weight * 0.5;
    }
    @Override
    public String getEstimatedDelivery() {
        return "5-7 business days";
    }
    @Override
    public String getMethodName() { return "Standard"; }
}

public class ExpressShipping implements ShippingMethod {
    @Override
    public double calculateCost(double weight) {
        return weight * 1.5;
    }
    @Override
    public String getEstimatedDelivery() {
        return "2-3 business days";
    }
    @Override
    public String getMethodName() { return "Express"; }
}

public class OvernightShipping implements ShippingMethod {
    @Override
    public double calculateCost(double weight) {
        return weight * 3.0;
    }
    @Override
    public String getEstimatedDelivery() {
        return "Next business day";
    }
    @Override
    public String getMethodName() { return "Overnight"; }
}

B6. Factory Method -- Shipping Factory¶

// Factory
public class ShippingFactory {
    public static ShippingMethod createShipping(String type) {
        switch (type.toLowerCase()) {
            case "standard":
                return new StandardShipping();
            case "express":
                return new ExpressShipping();
            case "overnight":
                return new OvernightShipping();
            default:
                throw new IllegalArgumentException(
                    "Unknown shipping type: " + type);
        }
    }
}

// Usage
public class ShippingDemo {
    public static void main(String[] args) {
        ShippingMethod shipping =
            ShippingFactory.createShipping("express");
        double cost = shipping.calculateCost(2.5); // 2.5 kg
        System.out.println("Method: "
            + shipping.getMethodName());
        System.out.println("Cost: $" + cost);
        System.out.println("Delivery: "
            + shipping.getEstimatedDelivery());
    }
}

B7. Integrated Order Class¶

import java.util.*;

public class Order {
    private String orderId;
    private double totalAmount;
    private double weight;
    private OrderState state;
    private List<OrderObserver> observers = new ArrayList<>();

    public Order(String orderId, double totalAmount, double weight) {
        this.orderId = orderId;
        this.totalAmount = totalAmount;
        this.weight = weight;
        this.state = new NewOrderState();
    }

    public void addObserver(OrderObserver observer) {
        observers.add(observer);
    }

    public void setState(OrderState newState) {
        String oldStatus = this.state.getStatus();
        this.state = newState;
        notifyObservers(oldStatus, newState.getStatus());
    }

    private void notifyObservers(String oldStatus, String newStatus) {
        for (OrderObserver observer : observers) {
            observer.update(orderId, oldStatus, newStatus);
        }
    }

    public void processPayment(PaymentStrategy paymentStrategy) {
        if (paymentStrategy.pay(totalAmount)) {
            state.next(this); // Transition from NEW to PAID
        }
    }

    public void ship(String shippingType) {
        ShippingMethod shipping = ShippingFactory.createShipping(shippingType);
        double cost = shipping.calculateCost(weight);
        System.out.println("Shipping via " + shipping.getMethodName()
            + " | Cost: $" + cost
            + " | ETA: " + shipping.getEstimatedDelivery());
        state.next(this); // Transition from PAID to SHIPPED
    }

    public void deliver() { state.next(this); }
    public void cancel() { state.cancel(this); }
    public String getStatus() { return state.getStatus(); }
    public String getOrderId() { return orderId; }
}

B7. Running the Integrated System¶

public class ECommerceDemo {
    public static void main(String[] args) {
        // Create an order
        Order order = new Order("ORD-001", 299.99, 3.5);

        // Register observers (Observer Pattern)
        order.addObserver(new EmailNotification());
        order.addObserver(new SMSNotification());
        order.addObserver(new PushNotification());

        System.out.println("Initial status: " + order.getStatus());
        System.out.println("---");

        // Process payment (Strategy Pattern)
        PaymentStrategy payment = new CreditCardPayment(
            "4111111111111234", "John Doe");
        order.processPayment(payment);
        System.out.println("---");

        // Ship the order (Factory Method Pattern)
        order.ship("express");
        System.out.println("---");

        // Deliver the order (State Pattern)
        order.deliver();
        System.out.println("---");

        System.out.println("Final status: " + order.getStatus());
    }
}

Output:

Initial status: NEW
---
Paid $299.99 with Credit Card ending in 1234
Order moved to PAID state.
[EMAIL] Order ORD-001: NEW -> PAID
[SMS] Order ORD-001: NEW -> PAID
[PUSH] Order ORD-001: NEW -> PAID
---
Shipping via Express | Cost: $5.25 | ETA: 2-3 business days
Order moved to SHIPPED state.
[EMAIL] Order ORD-001: PAID -> SHIPPED
[SMS] Order ORD-001: PAID -> SHIPPED
[PUSH] Order ORD-001: PAID -> SHIPPED
---
Order moved to DELIVERED state.
[EMAIL] Order ORD-001: SHIPPED -> DELIVERED
[SMS] Order ORD-001: SHIPPED -> DELIVERED
[PUSH] Order ORD-001: SHIPPED -> DELIVERED
---
Final status: DELIVERED

B7. Order Processing Flow¶

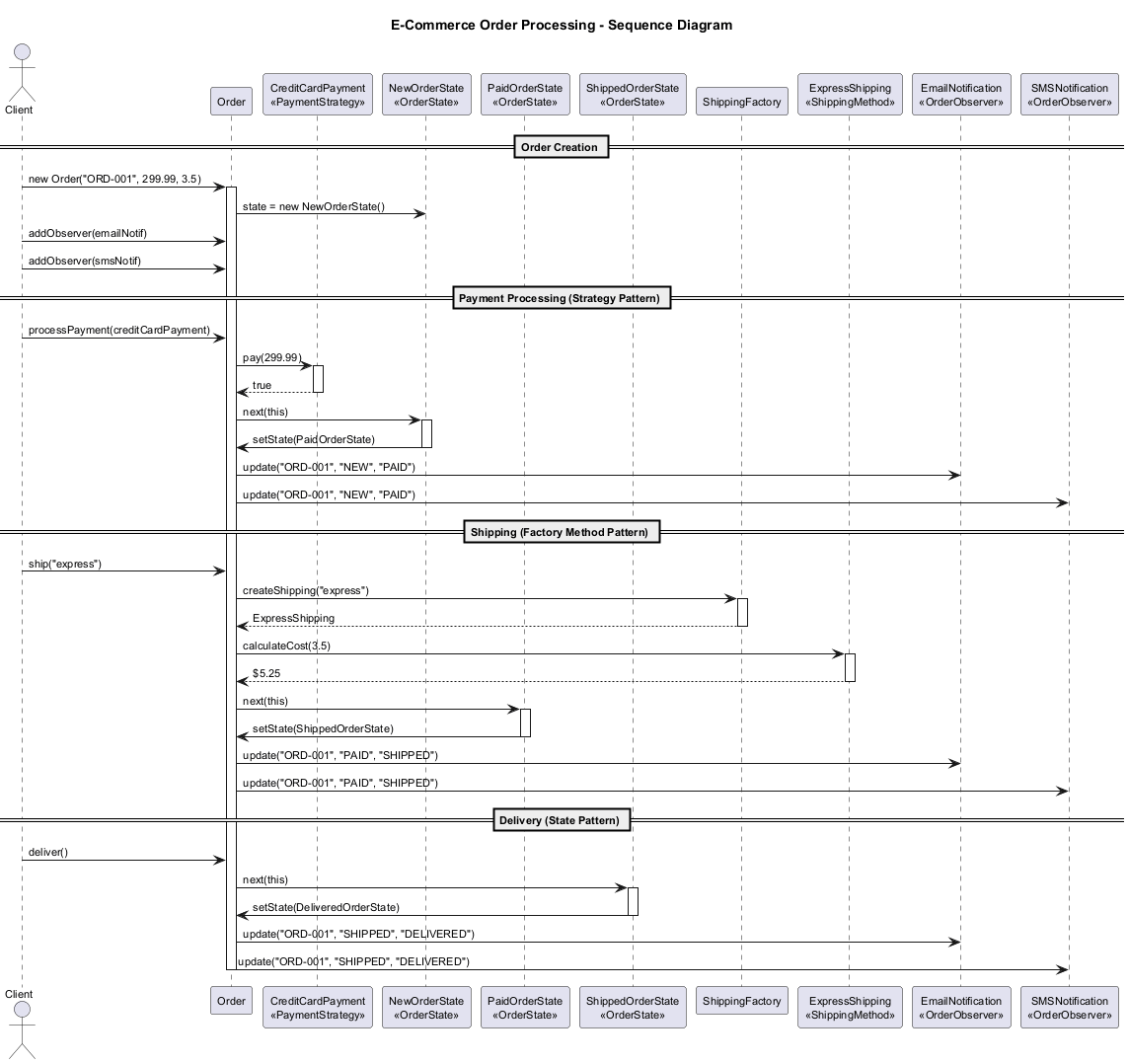

The following sequence diagram shows the complete order processing flow, illustrating how Strategy, State, Observer, and Factory Method patterns interact at runtime:

center

B8. Before/After Comparison¶

Before (Without Patterns)¶

Long if-else chains for payment, status, shipping, notifications
Adding a new payment method requires modifying processPayment()
Adding a new notification channel requires modifying every status transition
Status transitions are error-prone -- no validation

After (With Patterns)¶

Strategy: New payment methods = new class implementing PaymentStrategy
State: Clear transitions, impossible invalid state changes
Observer: New notification channel = new OrderObserver implementation
Factory Method: New shipping type = new class + factory update

Module B -- Takeaway¶

Key Lessons from E-Commerce Case Study¶

Patterns solve specific problems -- Don't apply a pattern unless you have the problem it solves.
Patterns work together -- Strategy, State, Observer, and Factory Method each handle a different concern in the same system.
Open/Closed Principle -- The system is open for extension (new payment methods, shipping types) but closed for modification.
Single Responsibility -- Each class has one reason to change.

Module C: Case Study 2¶

Text Editor with Undo/Redo¶

Module C Outline¶

Text Editor with Undo/Redo¶

This case study demonstrates the Command and Memento patterns working together.

Problem Description
Command Pattern (Editor Operations)
Memento Pattern (Undo/Redo)
Composite Pattern (Document Structure)
Integrated Text Editor
Step-by-Step Refactoring

C0. Text Editor -- Pattern Overview¶

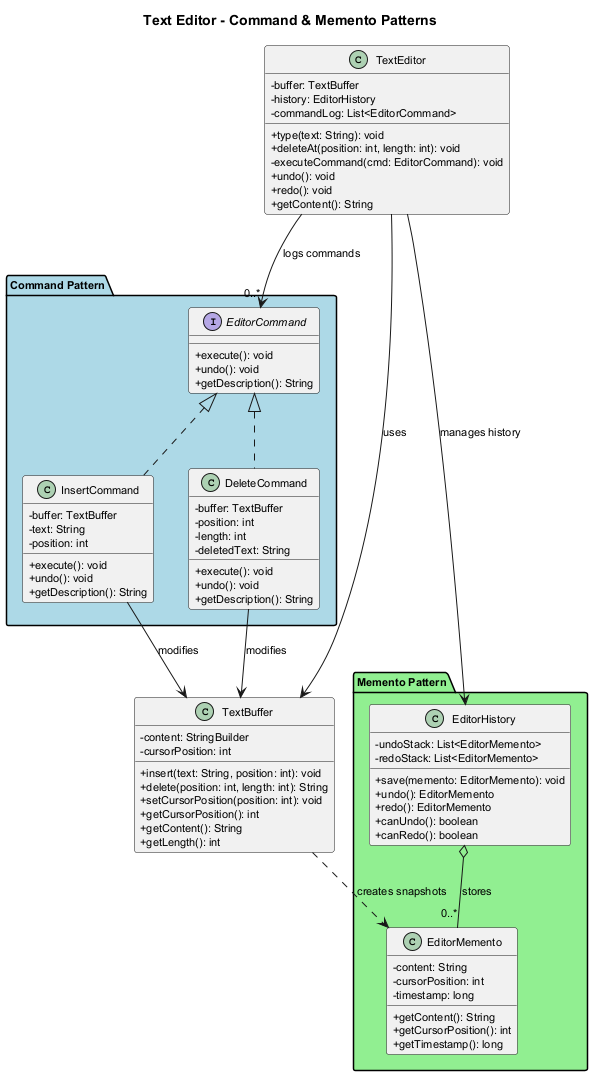

The following class diagram shows how the Command and Memento patterns work together in the Text Editor system:

center

C1. Problem Description¶

Text Editor Requirements¶

Build a simple text editor that supports:

Typing text at the cursor position
Deleting text at the cursor position
Bold/Italic formatting on selected text
Undo/Redo for all operations
Document structure with sections, paragraphs, and characters

The editor must remember the history of all operations and allow users to undo/redo them in order.

C2. Command Pattern -- Editor Operations¶

Goal: Encapsulate each operation as an object, supporting undo.

// Command interface
public interface EditorCommand {
    void execute();
    void undo();
    String getDescription();
}

// Receiver -- the actual text buffer
public class TextBuffer {
    private StringBuilder content = new StringBuilder();
    private int cursorPosition = 0;

    public void insert(String text, int position) {
        content.insert(position, text);
        cursorPosition = position + text.length();
    }

    public String delete(int position, int length) {
        String deleted = content.substring(position,
            position + length);
        content.delete(position, position + length);
        cursorPosition = position;
        return deleted;
    }

    public void setCursorPosition(int position) {
        this.cursorPosition = Math.min(position,
            content.length());
    }

    public int getCursorPosition() { return cursorPosition; }
    public String getContent() { return content.toString(); }
    public int getLength() { return content.length(); }
}

C2. Command Pattern -- Concrete Commands¶

// Concrete Command: Insert Text
public class InsertCommand implements EditorCommand {
    private TextBuffer buffer;
    private String text;
    private int position;

    public InsertCommand(TextBuffer buffer, String text,
                         int position) {
        this.buffer = buffer;
        this.text = text;
        this.position = position;
    }

    @Override
    public void execute() {
        buffer.insert(text, position);
    }

    @Override
    public void undo() {
        buffer.delete(position, text.length());
    }

    @Override
    public String getDescription() {
        return "Insert '" + text + "' at position " + position;
    }
}

// Concrete Command: Delete Text
public class DeleteCommand implements EditorCommand {
    private TextBuffer buffer;
    private int position;
    private int length;
    private String deletedText; // saved for undo

    public DeleteCommand(TextBuffer buffer, int position,
                         int length) {
        this.buffer = buffer;
        this.position = position;
        this.length = length;
    }

    @Override
    public void execute() {
        deletedText = buffer.delete(position, length);
    }

    @Override
    public void undo() {
        buffer.insert(deletedText, position);
    }

    @Override
    public String getDescription() {
        return "Delete " + length + " chars at position "
            + position;
    }
}

C3. Memento Pattern -- Editor State Snapshots¶

Goal: Capture and restore the editor's internal state for undo/redo.

// Memento -- immutable snapshot of editor state
public class EditorMemento {
    private final String content;
    private final int cursorPosition;
    private final long timestamp;

    public EditorMemento(String content, int cursorPosition) {
        this.content = content;
        this.cursorPosition = cursorPosition;
        this.timestamp = System.currentTimeMillis();
    }

    public String getContent() { return content; }
    public int getCursorPosition() { return cursorPosition; }
    public long getTimestamp() { return timestamp; }
}

// Caretaker -- manages the history of mementos
public class EditorHistory {
    private final List<EditorMemento> undoStack = new ArrayList<>();
    private final List<EditorMemento> redoStack = new ArrayList<>();

    public void save(EditorMemento memento) {
        undoStack.add(memento);
        redoStack.clear(); // new action invalidates redo history
    }

    public EditorMemento undo() {
        if (undoStack.size() <= 1) return null; // nothing to undo
        EditorMemento current = undoStack.remove(
            undoStack.size() - 1);
        redoStack.add(current);
        return undoStack.get(undoStack.size() - 1);
    }

    public EditorMemento redo() {
        if (redoStack.isEmpty()) return null;
        EditorMemento memento = redoStack.remove(
            redoStack.size() - 1);
        undoStack.add(memento);
        return memento;
    }

    public boolean canUndo() { return undoStack.size() > 1; }
    public boolean canRedo() { return !redoStack.isEmpty(); }
}

C4. Composite Pattern -- Document Structure¶

Goal: Represent the document as a tree of elements (sections, paragraphs, text).

import java.util.*;

// Component
public interface DocumentElement {
    String render();
    int getCharCount();
}

// Leaf: TextSpan
public class TextSpan implements DocumentElement {
    private String text;
    private boolean bold;
    private boolean italic;

    public TextSpan(String text) {
        this.text = text;
    }

    public void setBold(boolean bold) { this.bold = bold; }
    public void setItalic(boolean italic) {
        this.italic = italic;
    }

    @Override
    public String render() {
        String result = text;
        if (bold) result = "**" + result + "**";
        if (italic) result = "_" + result + "_";
        return result;
    }

    @Override
    public int getCharCount() { return text.length(); }
}

// Composite: Paragraph
public class Paragraph implements DocumentElement {
    private List<DocumentElement> children = new ArrayList<>();

    public void add(DocumentElement element) {
        children.add(element);
    }

    @Override
    public String render() {
        StringBuilder sb = new StringBuilder();
        for (DocumentElement child : children) {
            sb.append(child.render());
        }
        return sb.toString() + "\n";
    }

    @Override
    public int getCharCount() {
        return children.stream()
            .mapToInt(DocumentElement::getCharCount).sum();
    }
}

// Composite: Section
public class Section implements DocumentElement {
    private String title;
    private List<DocumentElement> children = new ArrayList<>();

    public Section(String title) { this.title = title; }

    public void add(DocumentElement element) {
        children.add(element);
    }

    @Override
    public String render() {
        StringBuilder sb = new StringBuilder();
        sb.append("=== ").append(title).append(" ===\n");
        for (DocumentElement child : children) {
            sb.append(child.render());
        }
        return sb.toString();
    }

    @Override
    public int getCharCount() {
        return children.stream()
            .mapToInt(DocumentElement::getCharCount).sum();
    }
}

C4. Composite Pattern -- Document Structure Diagram¶

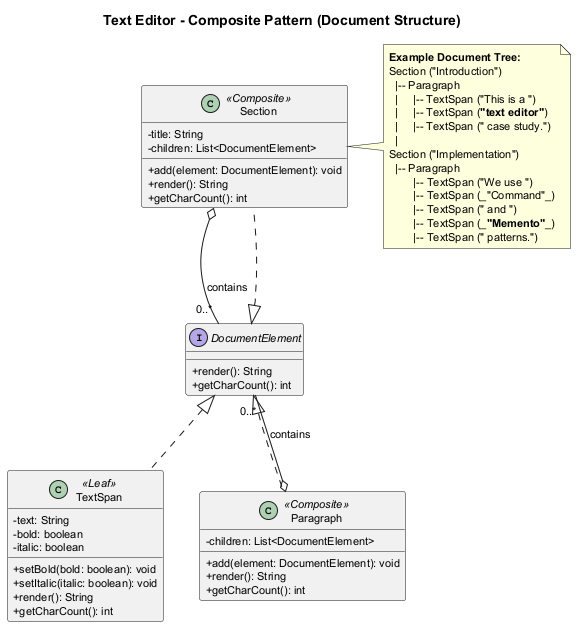

The following diagram illustrates how the Composite pattern models the document as a tree of elements:

center

C5. Integrated Text Editor¶

import java.util.*;

public class TextEditor {
    private TextBuffer buffer;
    private EditorHistory history;
    private List<EditorCommand> commandLog;

    public TextEditor() {
        this.buffer = new TextBuffer();
        this.history = new EditorHistory();
        this.commandLog = new ArrayList<>();
        // Save initial state
        history.save(new EditorMemento(
            buffer.getContent(), buffer.getCursorPosition()));
    }

    public void type(String text) {
        EditorCommand cmd = new InsertCommand(
            buffer, text, buffer.getCursorPosition());
        executeCommand(cmd);
    }

    public void deleteAt(int position, int length) {
        EditorCommand cmd = new DeleteCommand(
            buffer, position, length);
        executeCommand(cmd);
    }

    private void executeCommand(EditorCommand cmd) {
        cmd.execute();
        commandLog.add(cmd);
        history.save(new EditorMemento(
            buffer.getContent(), buffer.getCursorPosition()));
        System.out.println("Executed: " + cmd.getDescription());
    }

    public void undo() {
        EditorMemento memento = history.undo();
        if (memento != null) {
            buffer = new TextBuffer();
            buffer.insert(memento.getContent(), 0);
            buffer.setCursorPosition(memento.getCursorPosition());
            System.out.println("Undo performed.");
        } else {
            System.out.println("Nothing to undo.");
        }
    }

    public void redo() {
        EditorMemento memento = history.redo();
        if (memento != null) {
            buffer = new TextBuffer();
            buffer.insert(memento.getContent(), 0);
            buffer.setCursorPosition(memento.getCursorPosition());
            System.out.println("Redo performed.");
        } else {
            System.out.println("Nothing to redo.");
        }
    }

    public String getContent() { return buffer.getContent(); }
    public int getCursorPosition() { return buffer.getCursorPosition(); }
}

C5. Running the Text Editor¶

public class TextEditorDemo {
    public static void main(String[] args) {
        TextEditor editor = new TextEditor();

        // Type some text
        editor.type("Hello");
        System.out.println("Content: '" + editor.getContent()
            + "'\n");

        editor.type(" World");
        System.out.println("Content: '" + editor.getContent()
            + "'\n");

        editor.type("!");
        System.out.println("Content: '" + editor.getContent()
            + "'\n");

        // Undo last operation
        editor.undo();
        System.out.println("Content: '" + editor.getContent()
            + "'\n");

        // Undo again
        editor.undo();
        System.out.println("Content: '" + editor.getContent()
            + "'\n");

        // Redo
        editor.redo();
        System.out.println("Content: '" + editor.getContent()
            + "'\n");

        // Delete text
        editor.deleteAt(0, 5); // Delete "Hello"
        System.out.println("Content: '" + editor.getContent()
            + "'\n");

        // Undo delete
        editor.undo();
        System.out.println("Content: '" + editor.getContent()
            + "'");
    }
}

C5. Text Editor Output¶

Executed: Insert 'Hello' at position 0
Content: 'Hello'

Executed: Insert ' World' at position 5
Content: 'Hello World'

Executed: Insert '!' at position 11
Content: 'Hello World!'

Undo performed.
Content: 'Hello World'

Undo performed.
Content: 'Hello'

Redo performed.
Content: 'Hello World'

Executed: Delete 5 chars at position 0
Content: ' World'

Undo performed.
Content: 'Hello World'

C6. Document Structure Demo (Composite)¶

public class DocumentDemo {
    public static void main(String[] args) {
        // Build a document using the Composite pattern
        Section intro = new Section("Introduction");
        Paragraph p1 = new Paragraph();
        p1.add(new TextSpan("This is a "));
        TextSpan boldText = new TextSpan("text editor");
        boldText.setBold(true);
        p1.add(boldText);
        p1.add(new TextSpan(" case study."));
        intro.add(p1);

        Section body = new Section("Implementation");
        Paragraph p2 = new Paragraph();
        p2.add(new TextSpan("We use "));
        TextSpan italicText = new TextSpan("Command");
        italicText.setItalic(true);
        p2.add(italicText);
        p2.add(new TextSpan(" and "));
        TextSpan boldItalic = new TextSpan("Memento");
        boldItalic.setBold(true);
        boldItalic.setItalic(true);
        p2.add(boldItalic);
        p2.add(new TextSpan(" patterns."));
        body.add(p2);

        // Render the document
        System.out.println(intro.render());
        System.out.println(body.render());
        System.out.println("Intro chars: "
            + intro.getCharCount());
        System.out.println("Body chars: "
            + body.getCharCount());
    }
}

Output:

=== Introduction ===
This is a **text editor** case study.

=== Implementation ===
We use _Command_ and _**Memento**_ patterns.

Intro chars: 36
Body chars: 36

Module C -- Takeaway¶

Key Lessons from Text Editor Case Study¶

Command Pattern turns operations into objects -- enabling logging, queuing, and undo.
Memento Pattern captures state snapshots without violating encapsulation.
Composite Pattern allows uniform treatment of individual elements and compositions.
Patterns complement each other -- Command tracks what happened, Memento remembers how things were.
Step-by-step refactoring is safer than rewriting from scratch.

Module D: Case Study 3¶

Notification System Refactoring¶

Module D Outline¶

Notification System Refactoring¶

This case study focuses on identifying code smells and applying refactoring techniques.

Initial Monolithic Design
Identifying Code Smells
Extract Method Refactoring
Replace Conditional with Polymorphism
Applying the Strategy and Template Method Patterns
Before/After Code Comparison

D1. Initial Monolithic Design (The Smelly Code)¶

public class NotificationService {
    public void sendNotification(String type, String recipient,
            String subject, String message, boolean urgent,
            String templateName, Map<String, String> params) {

        String finalMessage = message;

        // Apply template if specified
        if (templateName != null && !templateName.isEmpty()) {
            if (templateName.equals("welcome")) {
                finalMessage = "Dear " + params.get("name")
                    + ",\nWelcome to our platform! " + message;
            } else if (templateName.equals("password_reset")) {
                finalMessage = "Hello " + params.get("name")
                    + ",\nClick here to reset your password: "
                    + params.get("resetLink") + "\n" + message;
            } else if (templateName.equals("order_confirmation")) {
                finalMessage = "Dear " + params.get("name")
                    + ",\nYour order #" + params.get("orderId")
                    + " has been confirmed.\nTotal: $"
                    + params.get("total") + "\n" + message;
            } else if (templateName.equals("shipping_update")) {
                finalMessage = "Dear " + params.get("name")
                    + ",\nYour order #" + params.get("orderId")
                    + " has been shipped.\nTracking: "
                    + params.get("trackingNumber") + "\n"
                    + message;
            }
        }

        // Send based on type
        if (type.equals("email")) {
            if (urgent) {
                System.out.println("[URGENT EMAIL] To: " + recipient);
                System.out.println("Subject: !!! " + subject + " !!!");
            } else {
                System.out.println("[EMAIL] To: " + recipient);
                System.out.println("Subject: " + subject);
            }
            System.out.println("Body: " + finalMessage);
            // Connect to SMTP server, authenticate, send...
            System.out.println("Email sent successfully.");

        } else if (type.equals("sms")) {
            String smsMessage = finalMessage;
            if (smsMessage.length() > 160) {
                smsMessage = smsMessage.substring(0, 157) + "...";
            }
            if (urgent) {
                smsMessage = "URGENT: " + smsMessage;
            }
            System.out.println("[SMS] To: " + recipient);
            System.out.println("Message: " + smsMessage);
            // Connect to SMS gateway, send...
            System.out.println("SMS sent successfully.");

        } else if (type.equals("push")) {
            if (urgent) {
                System.out.println("[PUSH - HIGH PRIORITY] To: "
                    + recipient);
            } else {
                System.out.println("[PUSH] To: " + recipient);
            }
            System.out.println("Title: " + subject);
            String pushBody = finalMessage.length() > 100
                ? finalMessage.substring(0, 97) + "..."
                : finalMessage;
            System.out.println("Body: " + pushBody);
            // Connect to push service, send...
            System.out.println("Push notification sent.");

        } else if (type.equals("slack")) {
            System.out.println("[SLACK] Channel: " + recipient);
            String slackMsg = "*" + subject + "*\n" + finalMessage;
            if (urgent) {
                slackMsg = ":rotating_light: " + slackMsg;
            }
            System.out.println("Message: " + slackMsg);
            // Connect to Slack API, send...
            System.out.println("Slack message sent.");
        }

        // Log the notification
        System.out.println("[LOG] " + type + " notification sent to "
            + recipient + " at " + new java.util.Date());
    }
}

D2. Identifying Code Smells¶

Smells Found in `NotificationService`¶

Smell	Description	Location
Long Method	`sendNotification()` is over 70 lines	Entire method
Feature Envy	Template processing does not belong in notification service	Template section
Switch Statements	Multiple if-else chains based on `type` and `templateName`	Throughout
Divergent Change	Adding a new notification type requires modifying this class	Type-based branching
Shotgun Surgery	Adding a new template requires modifying the same method	Template section
Primitive Obsession	Using strings for type, template name, and parameters	Method signature
Long Parameter List	7 parameters in a single method	Method signature

D2. Refactoring Plan¶

Step-by-Step Approach¶

Extract Method -- Break the long method into smaller methods
Replace Conditional with Polymorphism -- Eliminate type-based if-else
Introduce Parameter Object -- Reduce parameter count
Apply Strategy Pattern -- For notification channels
Apply Template Method Pattern -- For message formatting

Let's refactor step by step.

D3. Step 1 -- Introduce Parameter Object¶

Before: 7 parameters in the method signature.

After: A single NotificationRequest object.

import java.util.*;

public class NotificationRequest {
    private final String type;
    private final String recipient;
    private final String subject;
    private final String message;
    private final boolean urgent;
    private final String templateName;
    private final Map<String, String> params;

    public NotificationRequest(String type, String recipient,
            String subject, String message, boolean urgent,
            String templateName, Map<String, String> params) {
        this.type = type;
        this.recipient = recipient;
        this.subject = subject;
        this.message = message;
        this.urgent = urgent;
        this.templateName = templateName;
        this.params = params != null
            ? Collections.unmodifiableMap(params)
            : Collections.emptyMap();
    }

    // Getters
    public String getType() { return type; }
    public String getRecipient() { return recipient; }
    public String getSubject() { return subject; }
    public String getMessage() { return message; }
    public boolean isUrgent() { return urgent; }
    public String getTemplateName() { return templateName; }
    public Map<String, String> getParams() { return params; }
}

D3. Step 2 -- Extract Template Processing¶

Extract the template logic into its own class hierarchy.

// Template interface
public interface MessageTemplate {
    String apply(String baseMessage,
                 Map<String, String> params);
}

// Concrete Templates
public class WelcomeTemplate implements MessageTemplate {
    @Override
    public String apply(String baseMessage,
                        Map<String, String> params) {
        return "Dear " + params.get("name")
            + ",\nWelcome to our platform! " + baseMessage;
    }
}

public class PasswordResetTemplate implements MessageTemplate {
    @Override
    public String apply(String baseMessage,
                        Map<String, String> params) {
        return "Hello " + params.get("name")
            + ",\nClick here to reset your password: "
            + params.get("resetLink") + "\n" + baseMessage;
    }
}

public class OrderConfirmationTemplate
        implements MessageTemplate {
    @Override
    public String apply(String baseMessage,
                        Map<String, String> params) {
        return "Dear " + params.get("name")
            + ",\nYour order #" + params.get("orderId")
            + " has been confirmed.\nTotal: $"
            + params.get("total") + "\n" + baseMessage;
    }
}

// Template Registry
public class TemplateRegistry {
    private static final Map<String, MessageTemplate> templates
        = new HashMap<>();

    static {
        templates.put("welcome", new WelcomeTemplate());
        templates.put("password_reset",
            new PasswordResetTemplate());
        templates.put("order_confirmation",
            new OrderConfirmationTemplate());
    }

    public static String applyTemplate(String templateName,
            String baseMessage, Map<String, String> params) {
        if (templateName == null || templateName.isEmpty()) {
            return baseMessage;
        }
        MessageTemplate template = templates.get(templateName);
        if (template == null) {
            return baseMessage;
        }
        return template.apply(baseMessage, params);
    }
}

D4. Step 3 -- Replace Conditional with Polymorphism¶

Replace the if-else chain for notification types with a class hierarchy.

// Abstract notification channel using Template Method pattern
public abstract class NotificationChannel {

    // Template Method -- defines the algorithm skeleton
    public final void send(NotificationRequest request) {
        String message = prepareMessage(request);
        if (request.isUrgent()) {
            message = applyUrgencyFormatting(request, message);
        }
        deliverMessage(request, message);
        logNotification(request);
    }

    // Steps that subclasses implement
    protected String prepareMessage(NotificationRequest request) {
        return TemplateRegistry.applyTemplate(
            request.getTemplateName(),
            request.getMessage(),
            request.getParams()
        );
    }

    protected abstract String applyUrgencyFormatting(
        NotificationRequest request, String message);

    protected abstract void deliverMessage(
        NotificationRequest request, String message);

    protected void logNotification(NotificationRequest request) {
        System.out.println("[LOG] " + getChannelName()
            + " notification sent to "
            + request.getRecipient()
            + " at " + new java.util.Date());
    }

    protected abstract String getChannelName();
}

D4. Concrete Notification Channels¶

public class EmailChannel extends NotificationChannel {
    @Override
    protected String applyUrgencyFormatting(
            NotificationRequest request, String message) {
        return message; // urgency handled in delivery
    }

    @Override
    protected void deliverMessage(
            NotificationRequest request, String message) {
        if (request.isUrgent()) {
            System.out.println("[URGENT EMAIL] To: "
                + request.getRecipient());
            System.out.println("Subject: !!! "
                + request.getSubject() + " !!!");
        } else {
            System.out.println("[EMAIL] To: "
                + request.getRecipient());
            System.out.println("Subject: "
                + request.getSubject());
        }
        System.out.println("Body: " + message);
        System.out.println("Email sent successfully.");
    }

    @Override
    protected String getChannelName() { return "Email"; }
}

public class SMSChannel extends NotificationChannel {
    private static final int MAX_LENGTH = 160;

    @Override
    protected String applyUrgencyFormatting(
            NotificationRequest request, String message) {
        return "URGENT: " + message;
    }

    @Override
    protected void deliverMessage(
            NotificationRequest request, String message) {
        if (message.length() > MAX_LENGTH) {
            message = message.substring(0, MAX_LENGTH - 3)
                + "...";
        }
        System.out.println("[SMS] To: "
            + request.getRecipient());
        System.out.println("Message: " + message);
        System.out.println("SMS sent successfully.");
    }

    @Override
    protected String getChannelName() { return "SMS"; }
}

D4. More Notification Channels¶

public class PushChannel extends NotificationChannel {
    private static final int MAX_BODY_LENGTH = 100;

    @Override
    protected String applyUrgencyFormatting(
            NotificationRequest request, String message) {
        return message; // handled in delivery
    }

    @Override
    protected void deliverMessage(
            NotificationRequest request, String message) {
        if (request.isUrgent()) {
            System.out.println("[PUSH - HIGH PRIORITY] To: "
                + request.getRecipient());
        } else {
            System.out.println("[PUSH] To: "
                + request.getRecipient());
        }
        System.out.println("Title: " + request.getSubject());
        String pushBody = message.length() > MAX_BODY_LENGTH
            ? message.substring(0, MAX_BODY_LENGTH - 3) + "..."
            : message;
        System.out.println("Body: " + pushBody);
        System.out.println("Push notification sent.");
    }

    @Override
    protected String getChannelName() { return "Push"; }
}

public class SlackChannel extends NotificationChannel {
    @Override
    protected String applyUrgencyFormatting(
            NotificationRequest request, String message) {
        return ":rotating_light: " + message;
    }

    @Override
    protected void deliverMessage(
            NotificationRequest request, String message) {
        System.out.println("[SLACK] Channel: "
            + request.getRecipient());
        String slackMsg = "*" + request.getSubject()
            + "*\n" + message;
        System.out.println("Message: " + slackMsg);
        System.out.println("Slack message sent.");
    }

    @Override
    protected String getChannelName() { return "Slack"; }
}

D5. Refactored Notification Service¶

import java.util.*;

public class NotificationService {
    private final Map<String, NotificationChannel> channels;

    public NotificationService() {
        channels = new HashMap<>();
        channels.put("email", new EmailChannel());
        channels.put("sms", new SMSChannel());
        channels.put("push", new PushChannel());
        channels.put("slack", new SlackChannel());
    }

    public void send(NotificationRequest request) {
        NotificationChannel channel =
            channels.get(request.getType());
        if (channel == null) {
            throw new IllegalArgumentException(
                "Unknown channel: " + request.getType());
        }
        channel.send(request);
    }

    // Easy to add new channels without modifying existing code
    public void registerChannel(String name,
                                NotificationChannel channel) {
        channels.put(name, channel);
    }
}

Notice: The original 70+ line method is now a simple 5-line dispatch. Each channel handles its own logic independently.

D5. Refactored System -- Class Structure¶

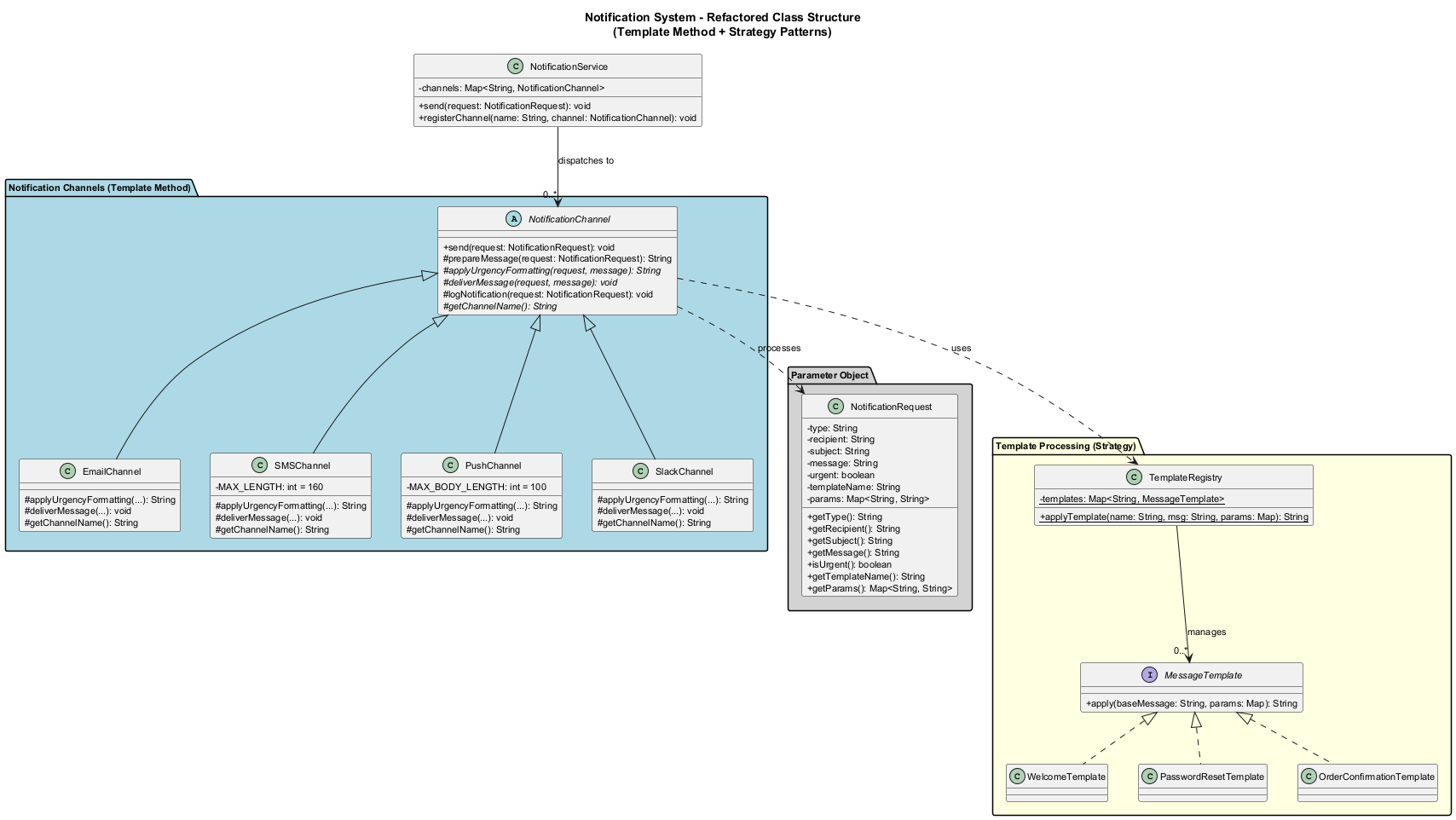

The following class diagram shows the complete refactored Notification System using Template Method and Strategy patterns:

center

D5. Using the Refactored Service¶

public class NotificationDemo {
    public static void main(String[] args) {
        NotificationService service = new NotificationService();

        // Send an email notification with template
        Map<String, String> params = new HashMap<>();
        params.put("name", "Alice");
        params.put("orderId", "ORD-456");
        params.put("total", "149.99");

        NotificationRequest emailReq = new NotificationRequest(
            "email", "alice@example.com",
            "Order Confirmed",
            "Thank you for your purchase!",
            false, "order_confirmation", params
        );
        service.send(emailReq);
        System.out.println("---");

        // Send an urgent SMS
        NotificationRequest smsReq = new NotificationRequest(
            "sms", "+1234567890",
            "Alert", "Server is down!",
            true, null, null
        );
        service.send(smsReq);
        System.out.println("---");

        // Send a Slack message
        NotificationRequest slackReq = new NotificationRequest(
            "slack", "#engineering",
            "Deploy Complete",
            "Version 2.5.0 deployed to production.",
            false, null, null
        );
        service.send(slackReq);
    }
}

D5. Refactored Flow -- Sequence Diagram¶

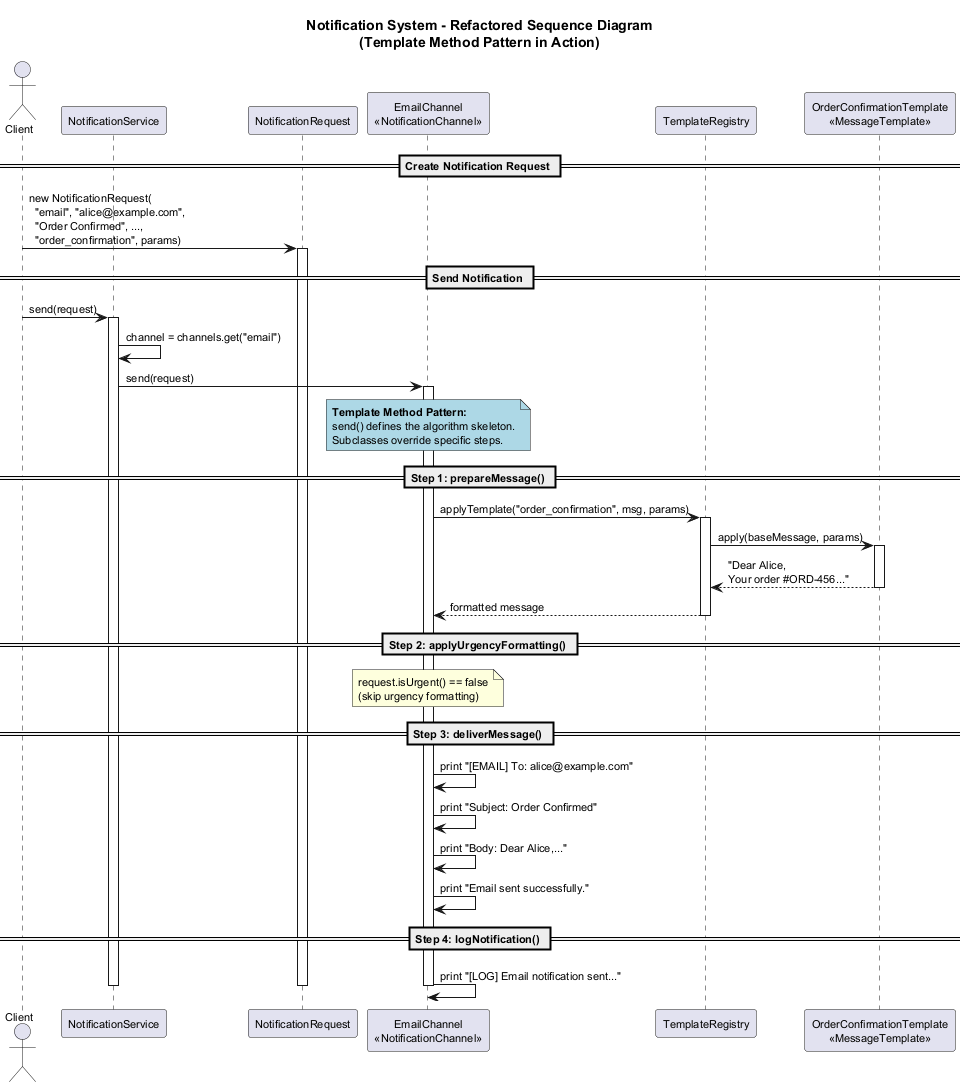

The following sequence diagram shows how the Template Method pattern orchestrates the notification delivery process:

center

D6. Before/After Comparison¶

Before¶

Metric	Value
Classes	1
Lines in main method	70+
Code smells	7 identified
Adding a new channel	Modify `sendNotification()`
Adding a new template	Modify `sendNotification()`
Testability	Low -- single monolithic method

After¶

Metric	Value
Classes	10+ (each with single responsibility)
Lines per method	5-15
Code smells	0
Adding a new channel	Add new class, register it
Adding a new template	Add new class, register it
Testability	High -- each class testable in isolation

Module D -- Takeaway¶

Key Lessons from Notification System Refactoring¶

Code smells are symptoms -- they point to deeper design problems.
Refactoring is incremental -- small, safe steps lead to major improvements.
Replace Conditional with Polymorphism is one of the most powerful refactorings.
Template Method works well when subclasses share an algorithm structure but differ in specific steps.
Parameter objects reduce complexity and improve readability.
Before/After metrics help justify refactoring effort to stakeholders.

Module E: Best Practices & Anti-Patterns¶

When Patterns Help and When They Hurt¶

Module E Outline¶

Best Practices & Anti-Patterns¶

When NOT to Use Design Patterns
Common Anti-Patterns
Balancing Simplicity vs. Extensibility
SOLID Principles Revisited
Practical Guidelines

E1. When NOT to Use Design Patterns¶

Over-Engineering Warning Signs¶

Design patterns are tools, not goals. Using a pattern where it is not needed creates unnecessary complexity.

Do NOT use a pattern when:

The problem is simple -- A straightforward if-else is fine for 2-3 cases.
You are not sure the code will change -- YAGNI (You Aren't Gonna Need It).
The pattern adds more code than it saves -- If the abstraction is more complex than the problem, skip it.
Your team does not understand the pattern -- Readability matters more than cleverness.

// OVER-ENGINEERED: Factory for 2 simple types
public class AnimalFactory {
    public static Animal create(String type) {
        if (type.equals("dog")) return new Dog();
        if (type.equals("cat")) return new Cat();
        throw new IllegalArgumentException(type);
    }
}

// SIMPLER: Just create the objects directly
Dog dog = new Dog();
Cat cat = new Cat();

E2. Anti-Pattern: God Object¶

What: A single class that knows too much and does too much.

Symptoms: Hundreds or thousands of lines, imports from everywhere, hard to test.

// BAD: God Object
public class ApplicationManager {
    public void handleUserLogin(String u, String p) { /* ... */ }
    public void processOrder(Order o) { /* ... */ }
    public void generateReport(String type) { /* ... */ }
    public void sendEmail(String to, String body) { /* ... */ }
    public void updateInventory(Item item) { /* ... */ }
    public void calculateTaxes(Order o) { /* ... */ }
    public void backupDatabase() { /* ... */ }
    public void processPayroll() { /* ... */ }
    // 50 more methods covering every aspect of the app...
}

// GOOD: Separate responsibilities into focused classes
public class AuthenticationService {
    public void login(String u, String p) { /* ... */ }
}
public class OrderService {
    public void processOrder(Order o) { /* ... */ }
}
public class ReportService {
    public void generateReport(String type) { /* ... */ }
}
public class NotificationService {
    public void sendEmail(String to, String body) { /* ... */ }
}

E3. Anti-Pattern: Singleton Abuse¶

What: Using Singleton for everything because "we only need one instance."

Problems: Hidden dependencies, hard to test, global mutable state.

// BAD: Singleton used as a global variable
public class DatabaseConnection {
    private static DatabaseConnection instance;
    private Connection connection;

    private DatabaseConnection() {
        // connect to database
    }

    public static DatabaseConnection getInstance() {
        if (instance == null) {
            instance = new DatabaseConnection();
        }
        return instance;
    }

    public void query(String sql) { /* ... */ }
}

// Every class depends on the singleton
public class OrderService {
    public void createOrder(Order order) {
        // Hidden dependency -- hard to test!
        DatabaseConnection.getInstance()
            .query("INSERT INTO orders ...");
    }
}

// GOOD: Use dependency injection instead
public class OrderService {
    private final DatabaseConnection db;

    public OrderService(DatabaseConnection db) {
        this.db = db; // Explicit dependency, testable
    }

    public void createOrder(Order order) {
        db.query("INSERT INTO orders ...");
    }
}

E4. Anti-Pattern: Pattern Obsession¶

What: Applying design patterns everywhere, even when simpler solutions exist.

Result: Code that is hard to follow because every simple operation is wrapped in layers of abstraction.

// OVER-PATTERNED: Simple string formatting
// using Strategy + Factory + Builder patterns
public interface FormatterStrategy {
    String format(String input);
}
public class UpperCaseFormatter implements FormatterStrategy {
    public String format(String input) {
        return input.toUpperCase();
    }
}
public class FormatterFactory {
    public static FormatterStrategy create(String type) {
        if ("upper".equals(type))
            return new UpperCaseFormatter();
        throw new IllegalArgumentException(type);
    }
}
// Usage: 4 classes for something trivial
String result = FormatterFactory.create("upper")
    .format("hello");

// SIMPLE: Just use the built-in method
String result = "hello".toUpperCase();

Rule of thumb: If you can explain the solution in one sentence, you probably do not need a pattern.

E5. Balancing Simplicity vs. Extensibility¶

The Complexity Spectrum¶

Simple Code  <-------|------->  Extensible Code
(Easy now)          (Sweet Spot)        (Easy later)

Guidelines for finding the sweet spot:

Question	If YES	If NO
Will this code change frequently?	Add abstraction	Keep it simple
Are there 3+ variations?	Use a pattern	Use if-else
Is the team familiar with the pattern?	Use it	Document or simplify
Does the pattern reduce duplication?	Use it	Skip it
Is this a core business feature?	Invest in design	Keep it pragmatic

E6. SOLID Principles Revisited¶

How SOLID Guides Pattern Usage¶

Principle	Description	Pattern Connection
S - Single Responsibility	A class should have one reason to change	Prevents God Objects
O - Open/Closed	Open for extension, closed for modification	Strategy, Observer, Decorator
L - Liskov Substitution	Subtypes must be substitutable for base types	Template Method, State
I - Interface Segregation	Prefer small, focused interfaces	Adapter, specific interfaces
D - Dependency Inversion	Depend on abstractions, not concretions	Factory, Dependency Injection

E6. SOLID in Our Case Studies¶

Single Responsibility¶

// Case Study 1: Each pattern handles one concern
PaymentStrategy    -> Payment processing only
OrderState         -> State transitions only
OrderObserver      -> Notifications only
ShippingMethod     -> Shipping logistics only

Open/Closed Principle¶

// Case Study 3: Adding a new notification channel
// does NOT modify existing code
public class TeamsChannel extends NotificationChannel {
    @Override
    protected String applyUrgencyFormatting(
            NotificationRequest request, String message) {
        return "!! " + message + " !!";
    }

    @Override
    protected void deliverMessage(
            NotificationRequest request, String message) {
        System.out.println("[TEAMS] To: "
            + request.getRecipient());
        System.out.println("Message: " + message);
    }

    @Override
    protected String getChannelName() { return "Teams"; }
}

// Just register it -- no modification to existing classes
service.registerChannel("teams", new TeamsChannel());

E7. Practical Guidelines¶

Decision Framework for Applying Patterns¶

Start simple -- Write the simplest code that works.
Wait for the smell -- Let code smells tell you when to refactor.
Refactor to patterns -- Apply patterns to solve specific problems, not preemptively.
Measure the improvement -- Lines of code, testability, coupling.
Document your decisions -- Future developers need to understand why a pattern was chosen.

The Three Strikes Rule¶

The first time you do something, just do it. The second time you do something similar, wince but do it anyway. The third time, refactor. -- Martin Fowler

Module E -- Takeaway¶

Best Practices Summary¶

Patterns are tools, not goals -- Use them to solve problems, not to impress.
Avoid anti-patterns -- God Object, Singleton abuse, and Pattern obsession create more problems than they solve.
Balance is key -- Too little design leads to spaghetti code; too much leads to lasagna code (too many layers).
SOLID principles guide decisions -- They help you know when a pattern is appropriate.
Refactor incrementally -- Small, safe steps are better than big rewrites.
Code is for humans -- Readability and maintainability trump cleverness every time.

Week-14 Summary¶

What We Learned¶

Module	Key Insight
A	Design patterns are used extensively in Java frameworks
B	Multiple patterns work together to solve complex problems (E-Commerce)
C	Command + Memento enable undo/redo; Composite models hierarchies (Text Editor)
D	Refactoring transforms smelly code into clean, extensible designs (Notifications)
E	Patterns should be applied judiciously, guided by SOLID principles

References¶

Gamma, E., Helm, R., Johnson, R., & Vlissides, J. (1994). Design Patterns: Elements of Reusable Object-Oriented Software. Addison-Wesley.
Freeman, E., Robson, E. (2020). Head First Design Patterns. O'Reilly Media.
Fowler, M. (2018). Refactoring: Improving the Design of Existing Code (2^nd Edition). Addison-Wesley.
Martin, R. C. (2008). Clean Code: A Handbook of Agile Software Craftsmanship. Prentice Hall.
Bloch, J. (2018). Effective Java (3^rd Edition). Addison-Wesley.

References (continued)¶

RefactoringGuru. Design Patterns. https://refactoring.guru/design-patterns
RefactoringGuru. Refactoring Techniques. https://refactoring.guru/refactoring/techniques
Oracle. Java Platform SE Documentation. https://docs.oracle.com/javase/
Kerievsky, J. (2004). Refactoring to Patterns. Addison-Wesley Professional.
Martin, R. C. (2003). Agile Software Development: Principles, Patterns, and Practices. Prentice Hall.

\(End-Of-Week-14-Module\)

Contributors:

Ugur Coruh (100.0%)

CEN206 Object-Oriented Programming¶

Week-14 (Case Studies - Design Patterns & Refactoring in Practice)¶

Spring Semester, 2025-2026¶

Week-14 Overview¶

Case Studies - Design Patterns & Refactoring in Practice¶

Why Case Studies?¶

Module A: Real-World Design Pattern Applications¶

How Design Patterns Appear in Java Frameworks¶

Module A Outline¶

Real-World Design Pattern Applications¶

A1. Singleton -- Runtime.getRuntime()¶

A1. Singleton -- How Runtime Works Internally¶

A2. Iterator -- java.util.Iterator¶

A3. Observer -- EventListener¶

A3. Observer -- Using the Stock Example¶

A4. Factory Method -- Calendar.getInstance()¶

A5. Decorator -- java.io Streams¶

A6. Strategy -- java.util.Comparator¶

A7. Template Method -- java.io.InputStream¶

A8. Adapter -- Arrays.asList()¶

Module A -- Takeaway¶

Design Patterns Are Everywhere in Java¶

Module B: Case Study 1¶

E-Commerce Order Processing System¶

Module B Outline¶

E-Commerce Order Processing System¶

B0. E-Commerce System -- Pattern Overview¶

B1. Problem Description¶

Online Store Requirements¶

B2. Design Without Patterns (Naive Approach)¶

B3. Strategy Pattern -- Payment Methods¶

B3. Strategy Pattern -- More Payment Methods¶

B4. State Pattern -- Order Status Transitions¶

B4. State Pattern -- More States¶

B4. State Pattern -- Terminal States¶

B5. Observer Pattern -- Notifications¶

B6. Factory Method -- Shipping¶

B6. Factory Method -- Shipping Factory¶

B7. Integrated Order Class¶

B7. Running the Integrated System¶

B7. Order Processing Flow¶

B8. Before/After Comparison¶

Before (Without Patterns)¶

After (With Patterns)¶

Module B -- Takeaway¶

Key Lessons from E-Commerce Case Study¶

Module C: Case Study 2¶

Text Editor with Undo/Redo¶

Module C Outline¶

Text Editor with Undo/Redo¶

C0. Text Editor -- Pattern Overview¶

C1. Problem Description¶

Text Editor Requirements¶

C2. Command Pattern -- Editor Operations¶

C2. Command Pattern -- Concrete Commands¶

C3. Memento Pattern -- Editor State Snapshots¶

C4. Composite Pattern -- Document Structure¶

C4. Composite Pattern -- Document Structure Diagram¶

C5. Integrated Text Editor¶

C5. Running the Text Editor¶

C5. Text Editor Output¶

C6. Document Structure Demo (Composite)¶

Module C -- Takeaway¶

Key Lessons from Text Editor Case Study¶

Module D: Case Study 3¶

Notification System Refactoring¶

Module D Outline¶

Notification System Refactoring¶

D1. Initial Monolithic Design (The Smelly Code)¶

D2. Identifying Code Smells¶

Smells Found in NotificationService¶

D2. Refactoring Plan¶

Step-by-Step Approach¶

D3. Step 1 -- Introduce Parameter Object¶

D3. Step 2 -- Extract Template Processing¶

D4. Step 3 -- Replace Conditional with Polymorphism¶

D4. Concrete Notification Channels¶

D4. More Notification Channels¶

D5. Refactored Notification Service¶

D5. Refactored System -- Class Structure¶

A1. Singleton -- `Runtime.getRuntime()`¶

A1. Singleton -- How `Runtime` Works Internally¶

A2. Iterator -- `java.util.Iterator`¶

A3. Observer -- `EventListener`¶

A4. Factory Method -- `Calendar.getInstance()`¶

A5. Decorator -- `java.io` Streams¶

A6. Strategy -- `java.util.Comparator`¶

A7. Template Method -- `java.io.InputStream`¶

A8. Adapter -- `Arrays.asList()`¶

Smells Found in `NotificationService`¶
